JING wired up two more control axes, four days later

Four days ago I wrote up XGEN-JING and DAO — the renderer shipped, the world engine did not — and in the middle of it was a small observation about the control surface. jing_flash_v1/config.json declares a six-dimensional camera control vector, and the parser that fills it populated two dimensions:

# models/control.py at the 17 September release
return [
    float(("d" in keys) - ("a" in keys)),  # strafe
    0.0,
    float(("w" in keys) - ("s" in keys)),  # forward / back
    0.0, 0.0, 0.0,
]

On 20 September, commit cbeec31 landed, titled "fix: remove unintended limitations and clean up prompt skills". Ten files, and the one that matters is that function:

# models/control.py at cbeec31
"""Map simultaneous WASD/IJKL keys to [tx, ty, tz, pitch, yaw, roll]."""
return [
    float(("d" in keys) - ("a" in keys)),
    0.0,
    float(("w" in keys) - ("s" in keys)),
    float(("i" in keys) - ("k" in keys)),   # pitch — look up / down
    float(("l" in keys) - ("j" in keys)),   # yaw   — turn left / right
    0.0,
]

Four hard-coded zeros became two, so the live axes go from two of six to four of six. The commit also adds examples/train_carriage_gaze.json, whose second chunk is "control": ["j","j","j"] and whose fourth is ["l","l","l"] — an example that exists, as far as I can tell, to exercise the axes the commit unlocked. This piece is about what those six slots are attached to, which turns out to be a lot more model than the two-line diff suggests, and about the parts of the conditioning interface I did not take apart the first time.

Three hundred million parameters behind six numbers

I pulled the safetensors headers out of all fifteen shards over HTTP range requests rather than trusting the Hub's metadata, which returns empty for this repo. The totals:

So the exact parameter count is 33,425,588,992 — 33.408B in BF16 plus 17.3M kept in FP32 (the time embedder, the video and audio in/out projections). My earlier piece put it at "~33.4B" from dividing 66.9 GB by two bytes; that back-of-envelope was right to three significant figures, and now it does not need to be an envelope.

The control group is the interesting row. Its 408 tensors are eight in a shared encoder and eight each in fifty block injectors — one per transformer layer, matching num_layers: 50. Each injector is a FiLM:

# models/control.py
class FiLM(nn.Module):
    def __init__(self, control_dim, hidden_dim):
        self.mlp1 = nn.Linear(control_dim, control_dim)     # 512 → 512
        self.mlp2 = nn.Linear(control_dim, control_dim)     # 512 → 512
        self.scale = nn.Linear(control_dim, hidden_dim)     # 512 → 5376
        self.shift = nn.Linear(control_dim, hidden_dim)     # 512 → 5376
        nn.init.zeros_(self.scale.weight); nn.init.zeros_(self.scale.bias)
        nn.init.zeros_(self.shift.weight); nn.init.zeros_(self.shift.bias)

6,041,088 parameters each, times fifty, plus 541,696 in the encoder, is 302,596,096 — 0.91% of the checkpoint, devoted entirely to making six numbers modulate every layer's hidden state. The zero-initialised scale and shift are the ControlNet-family trick: at initialisation the injector is the identity, so control can be trained into a finished model without breaking it.

Two details in that encoder are worth reading as archaeology. The input projection is [512, 6] — six in, exactly as the config declares, and Control refuses to build with any other dim_in. And sitting beside it is a second, larger projection that is never called:

# models/control.py — ControlEncoder.__init__
self.input_proj = nn.Linear(dim_in * t, dim_out)
# Retained because control state dictionaries contain this projection.
self.dense_input_proj = nn.Linear(dim_in * t * h * w, dim_out)

dense_input_proj.weight is [512, 24] in the shipped checkpoint — 6 × 1 × 2 × 2, so patch_size = (1, 2, 2) — and 12,800 dead parameters. A dense input projection takes one control value per spatial patch rather than one per slice. Somebody trained a per-patch control path, and what shipped uses the per-slice one. That is a bigger hint about where this model is going than either of the two axes the commit turned on.

The conditioning interface is text, almost all the way down

The README's one-sentence summary is: "Given actions, reference images, and observation history, JING generates first-person video and audio." Having now read the packer and both shipped examples, here is what each of those three is in practice.

An action is a prompt chunk. Not a symbol, not a verb from a vocabulary — a paragraph. expand_slices() accepts exactly three keys per chunk and nothing else:

if not isinstance(chunk, dict) or set(chunk) - {"prompt", "repeat", "control"}:
    raise ValueError(f"Chunk {index}: only prompt, repeat and control are accepted")

The prompt itself is structured, but structured as prose, with three named sections the prompt skill compiles into: integrated_multimodal_description, overall_soundscape, and non_diegetic_music. Camera framing, who is in shot, whose lips are closed, and what the room sounds like all arrive as English sentences.

Dialogue is a tag inside that string. This is the part I did not expect:

Current speaker: Clara (S2, warm clear adult female voice). Clara looks at me
and replies with a welcoming expression: <d>[English] I'm Clara, the town's
teacher. Welcome to town!</d> Only Clara speaks. I listen silently…

There is no dialogue field, no speaker id, no audio input. A line of speech is <d>[English] … </d> inside the prompt, and the voice is described next to it in words — "warm clear adult female voice". The soundscape is the same: overall_soundscape: Only Clara's warm female voice, over faint oven crackle. The audio half of "video and audio generated together" is conditioned entirely through the text encoder.

That said, the joint generation itself is not a bolt-on. The transformer has audio_proj_in [5376, 32] and audio_proj_out [32, 5376] beside the video proj_in [5376, 96] and proj_out [96, 5376] — a 32-channel audio latent and a 24-channel video latent (96 = 24 × 2 × 2 patch) entering and leaving the same fifty-layer trunk. Audio and video are not two models stitched at the output; they are two token streams through one stack, which is what audio_in_channels: 32 in the config means and why the pairing is in sync at all.

Reference images are prepended at negative time. ref_image_slots: 5 inside reserved_slots: 15, and the packer places them like this:

# models/packing.py
ref_pos[:, 0] = -generation["reserved_slots"] + index

Reference frames occupy temporal positions before frame zero, at reference_timestep: 0.0 — that is, as clean, fully-denoised context — with the text tokens packed below them at more negative indices still. They are addressed from the prompt as <Picture 1>, <Picture 2>, up to five. So the scene, the character and the object you hand it are literally the first things on the timeline.

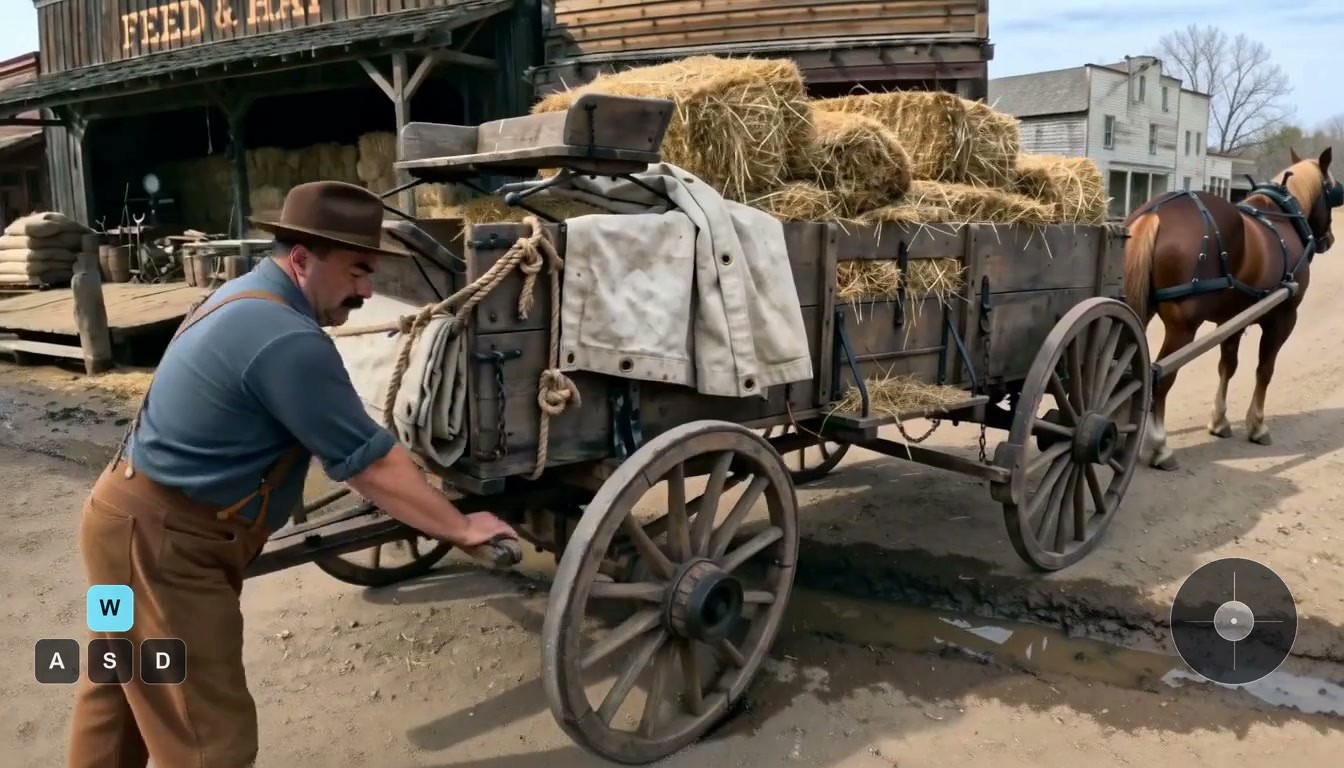

XGEN's research page demonstrates exactly that three-slot case, and publishes the inputs beside the output.

expand

expand

Observation history is the clip so far, which in this release means the rest of the same tensor.

What "interactive" costs

The layout formula is in the README — num_frames = 17 * sum(repeat) + 5 — and it checks on both shipped examples: bakery_greeting sums to 21 repeats and declares 362 frames, train_carriage_gaze sums to 29 and declares 498. The prompt skill fixes the frame rate: "The compiler targets 24 FPS with generation.first_chunk_size=2."

So one control slice is 17 frames, 0.708 seconds. That is the finest interval at which a key, a line of dialogue, or the soundscape can change. It is not a latency in the usual sense — it is a quantisation. Even a perfectly responsive causal build of this architecture could not react to a keypress sooner than the next slice boundary, because the slice is the unit the control vector attaches to. For comparison, a 60 Hz game loop's input-to-photon budget is around 50 ms; this is fourteen times that, before any model has run.

The wall clock is the part nobody has published. The demo is validated on six H100s — one for the text encoder, one for the video and audio VAEs, four for the DiT under sequence parallelism, FlashAttention-4 as the default backend — and there is no throughput number in the README, the model card, or the repository. The four-step FlashGen distillation is there to make it fast, and the WBench entry that ranks #1 is the bidirectional variant. I cannot run it and will not guess at it.

What the code does settle is the shape of the latency, and it is the same finding as four days ago from a different angle:

# models/attention.py
out, _ = flash_attn_func(q, k, v, causal=False)

Non-causal attention over the packed clip means frame 1 depends on frame 362. There is no prefix you can emit early. Time-to-first-frame equals time-to-last-frame, whatever that is, and the round trip for any action is the generation of everything after it as well. The README is straight about this — "This release provides four-step bidirectional inference… The causal model and technical report are coming soon" — and pipelines/bidirection.py reads a static JSON file of pre-written chunks, encodes the whole thing, denoises it in four steps and decodes one finished clip.

The part that reads as a correction

I want to be careful about causation here, because it would be flattering and almost certainly wrong to claim any. This site published on 18 September; the commit landed on 20 September; its title is "fix: remove unintended limitations". Four axes that the architecture reserved, the parser zeroed and the README did not mention were, by XGEN's own description, unintended. A project that ships a control interface with two of six dimensions live and then connects two more within a working week is a project moving fast, not one reacting to a blog.

What I will say is that the change is exactly the kind a reader can check, and that the README changed with it rather than after it:

Two slots remain literal zeros: ty, which would be rise and fall, and roll. For a first-person model, roll being absent is a reasonable product decision — people do not tilt their heads sideways much and a world model that lets you is a world model that will make you ill. Vertical translation is a harder omission to explain, since crouching, standing and stairs are all egocentric primitives, and the stairway shot in XGEN's own hero loop climbs.

The last thing in that commit worth pointing at is prompt_skills/SKILL.md, which is an agent skill in the Claude Code sense — YAML frontmatter with name and description, a workflow to run, three prompt files to edit when you want different generation behaviour. Its job is to turn a story and some reference images into a validated cases JSON. Given that the conditioning interface for this model is paragraphs of English with dialogue tags in them, shipping a language model's instructions as part of the release is not a novelty item. It is the compiler.
