Switch Transformers: route every token to exactly one expert

2026-07-10 · 8 min · mixture-of-experts · llm · architecture · deep-learning · explainer

Every modern giant open-weights model — LongCat 2.0 at 1.6T parameters, and the rest of the sparse-MoE zoo — runs on one idea: don't run all the parameters on every token. Keep a big pile of experts, and for each token light up only a few. The mechanism, built from a router and a sparse forward pass, is walked through in Mixture of Experts, from scratch. Switch Transformers (Fedus, Zoph & Shazeer, 2021) is the paper that made that idea simple enough to scale — and it did so with one deliberately blunt move: route each token to exactly one expert.

That sounds like a footnote. It was the whole contribution. The prior MoE recipe (Shazeer et al., 2017) argued you needed to route each token to at least the top-2 experts — the reasoning being that comparing two experts gives the router a gradient signal to learn which is better. Switch throws that out and keeps only the top-1, the single argmax expert. Flip the toggle below and watch the routing collapse from two connectors per token to one:

router · one token, its expert(s)illustrative

routing

1 expert/token · 6 routes · 6 routed copies to move

Classic MoE keeps the two best experts per token; Switch keeps only the argmax. Halving the routes halves the router math and — because experts live on different devices — the number of token copies shuffled across the network. Switch's bet is that with a load-balancing loss and a capacity buffer, one expert per token is enough. See the mechanism built up in Mixture of Experts, from scratch.

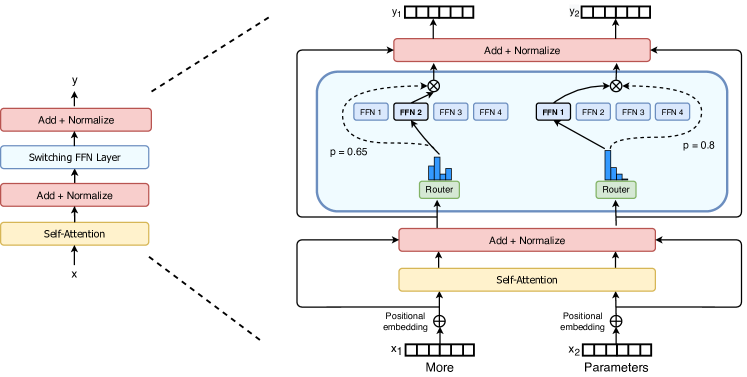

Switch Transformer encoder block. Left, a standard transformer block with a Switching FFN Layer replacing the dense feed-forward network. Right, the layer expanded: two tokens x1 and x2 each pass through self-attention, then a Router that selects a single FFN — token x1 goes to FFN 2 with probability 0.65, token x2 goes to FFN 1 with probability 0.8 — and the chosen expert's output is scaled by that gate probability before the add-and-normalize. — The Switch layer swaps the dense FFN for a set of expert FFNs; the router sends each token to just one expert (x1→FFN 2 at p=0.65, x2→FFN 1 at p=0.8) and scales that expert's output by the gate probability (Switch Transformers, Fedus et al. 2021, Figure 2).

Why is top-1 worth a paper? Because the top-2 you save is not free compute you were wasting — it is a second copy of every token that has to be dispatched to another device. Experts are sharded across accelerators; routing a token to an expert means sending its activation over the network. Halving the experts-per-token roughly halves both the router's arithmetic and the all-to-all communication volume — the actual bottleneck at scale. Switch's claim is that with the right guardrails, one expert per token loses little quality while making the whole thing dramatically cheaper to run.

The capacity buffer, and the tokens it drops

The catch with routing is that it is dynamic — you don't know until runtime how many tokens will pick each expert, but hardware needs fixed tensor shapes. Switch solves this by giving every expert a fixed buffer:

\text{expert capacity} = \frac{\text{tokens per batch}}{\text{number of experts}} \times \text{capacity factor}

If routing were perfectly uniform, a capacity factor of 1.0 would give each expert exactly its fair share of slots. It never is uniform. When more tokens route to an expert than it has slots, the overflow tokens are dropped — they skip the layer entirely and pass through the residual connection unchanged. Drag the load imbalance and the capacity factor and watch tokens overflow into red:

expert buffers · a batch of 24 tokensillustrative

capacity factor

17% dropped17% slots emptybuffer = 6/expert

load imbalance (drag)

Each expert gets exactly 6 slots (buffer = tokens/experts × capacity factor). Under a skewed load the busy expert overflows and those tokens are dropped — they pass straight through the residual, unprocessed. Raise the capacity factor and drops fall, but the emptier buffers waste compute and memory. That tension is why the load-balancing loss matters: flatten the routing and a small buffer suffices.

This is the core tradeoff, made concrete. A higher capacity factor (the paper tests 1.0, 1.25, and 2.0) means fewer dropped tokens — but every empty slot is compute and memory spent on nothing. A lower factor is cheaper but throws away more tokens. The whole point of good load balancing is to flatten the routing so a small buffer suffices.

The two tricks that make top-1 stable

Blunt top-1 routing would collapse — the router would learn to send everything to a handful of experts, starving the rest. Two mechanisms hold it together:

Differentiable load-balancing loss. An auxiliary loss added at every Switch layer, scaled by $\alpha = 10^{-2}$ , is minimized when tokens are spread uniformly across experts. It's the product of the fraction of tokens dispatched to each expert and the router's average probability mass on that expert, summed over experts — a smooth penalty that pushes the router toward balanced assignment without hard constraints.
Selective precision. Large sparse models train in bfloat16 for speed, but the router's exp/softmax over expert logits is numerically fragile — small perturbations flip the argmax and destabilize training. Switch casts only the router's internal computation to float32, keeping everything else in bfloat16. The fp32 stays local to the router (it isn't communicated across devices), so it buys stability at no bandwidth cost.

Add expert dropout at fine-tuning time — a higher dropout rate of 0.4 inside the expert layers versus 0.1 elsewhere — to keep the huge sparse model from overfitting small downstream datasets, and top-1 routing trains cleanly.

What it bought: 7× at matched FLOPs

Held to the same FLOPs per token as a dense T5, Switch reaches the same pretraining quality far sooner. The 64-expert Switch-Base hits T5-Base's quality in about one-seventh the training steps; scaled up, Switch-XXL reaches T5-XXL's quality about 4× faster.

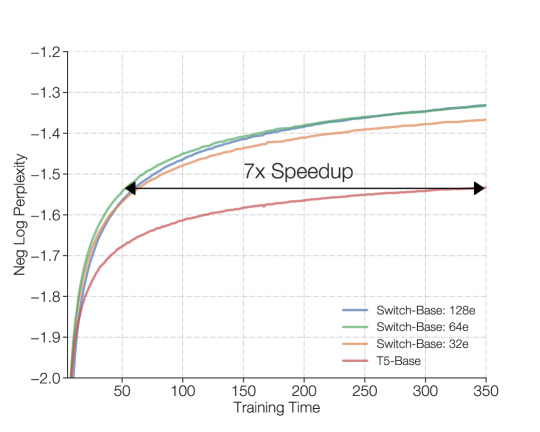

A learning-curve chart with negative log perplexity on the y-axis and training time on the x-axis. Four curves: Switch-Base with 128, 64, and 32 experts all rise well above the T5-Base curve, reaching a given quality much earlier. A horizontal arrow labeled 7x Speedup marks the training-time gap between Switch-Base and T5-Base at equal quality. — At equal FLOPs per token, Switch-Base reaches a target quality about 7× sooner than the dense T5-Base — the sample-efficiency win that motivates the whole design (Switch Transformers, Fedus et al. 2021, Figure 5).

Pretraining speedup to match the dense baseline (matched FLOPs, ×)

Switch-Base vs T5-Base

7×

Switch-XXL vs T5-XXL

4×

02468

The other headline is raw scale. By stacking experts, the paper builds Switch-C with 2,048 experts and roughly 1.6 trillion total parameters — while Switch-XXL takes a different bet, only 64 experts but a much larger per-expert FFN, at ~395B parameters. Both were among the largest models trained at the time.

Distilling back to dense

A 1.6T-parameter sparse model is impractical to serve for many use cases — the parameters have to live in memory across many devices even if each token only touches a few. So the paper distills the sparse teacher back into a small dense student, and finds you can compress the model by up to 99% while still keeping about 30% of the quality improvement the sparse model earned over its dense baseline. Not all of it — but a meaningful slice of the gains survives into a model you can run on modest hardware.

warning

Read the wins precisely — none of them is a free lunch.

1.6T is sparse, not dense. Switch-C activates a single expert's FFN per token, so the FLOPs and activated parameters per token stay close to the dense T5 backbone — nowhere near 1.6T of compute. The trillion parameters are capacity you store and communicate, not compute you spend per token. Never read "1.6T" as dense-1.6T cost.
7× is sample-efficiency at matched FLOPs, not wall-clock magic. It means reaching a quality target in fewer steps at equal FLOPs-per-token — bought by spending far more memory and cross-device communication on many more parameters. On different hardware or with communication-bound serving, the real-world speedup shrinks.
Top-1 is not strictly better than top-2. Routing to one expert can be lower-quality per FLOP in some settings; Switch's contribution is showing it works well once you add the capacity buffer, the load-balancing loss, and the fp32 router — not that fewer experts is always better.
Dropped tokens are lost information. At a low capacity factor, overflow tokens skip the layer entirely. That's a genuine cost you trade against buffer waste — there's no setting that removes it, only balances it.

Why it still matters

Almost every technique in a modern MoE — LongCat 2.0's 1.6T / ~48B-active split, the routing and load-balancing machinery in newer systems — is a descendant of the choices made here. Switch didn't invent Mixture-of-Experts; it made it simple and stable enough to scale, by proving that the aggressive top-1 route works if you surround it with a fixed capacity buffer, a balancing loss, and a precision-safe router. The interesting later work mostly pushes back on the simplifications — smarter routing than pure argmax, softer handling than hard token drops — but they all start from the Switch layer. It's the foundation the zoo is built on.

Built on Switch Transformers: Scaling to Trillion Parameter Models with Simple and Efficient Sparsity (Fedus, Zoph & Shazeer, 2021). Figures are the paper's own (Figures 2 and 5), used for academic commentary; the interactive diagrams are our illustrations of the mechanism. Numbers — the α=0.01 loss coefficient, capacity factors, the 7× and 4× speedups, 2,048 experts / 1.6T parameters, 99% compression retaining ~30% of gains, and 0.4 expert dropout — are quoted from the paper.
