Two posts this week pointed at the same repository. A Chinese post by @Lonely__MH said that "MoE heterogeneous parallelism" runs the 125B Qwen 3.8 Flash Next on 12 GB of VRAM at over 80 tok/s, and ended with "有谁试试吗？我不信": has anyone tried it, I don't believe it. A few days earlier @needmorevram had posted a screen recording of the same engine on one RTX 3090: 97 tok/s on a 2,421-token prompt, 54.1 tok/s on a 142,550-token one, MTP drafts accepted 87% of the time at 3.29 tokens per step.

The site has covered Strata twice. TensorFold and Strata checked the launch numbers against bytes per token and found the 65 tok/s claim real but paired with an untuned baseline. A 200 GB MoE on one RTX 3090 read the 3090 frame and argued that the CPU's arithmetic, not the DDR bus, sets the pace. I will not redo either. This piece reads the code: what happens in one verify window, in what order, with which constants, and what those constants say about the 3090 run.

What changed since 26 September

I cloned the repository with full history at commit 1735d64 (6 October, 03:07 CEST). The first article described 4 commits and no licence. Now (measured, from git log):

• 1,152 commits, 1,147 of them since 26 September, from 132 author names. Niko1221 wrote 700. There are 41 v0.1.x tags; v0.1.40 is from today.
• An MIT licence, added on 28 September. third_party/ggml keeps its own MIT notice.
• The cache warning is gone. The first article quoted a start-up message that said the GPU hit path "is NOT CORRECT". On 27 September the author ran the A/B the article asked for, in bench/results/2026-09-27-cache-parity: teacher-forced over 2,557 tokens of three texts, cache on against cache off, the top-1 token agreed at 95.0-97.7% of positions and perplexity moved by -0.005 ± 0.005 nats per token (reported). The flips are near-ties: a GPU expert and a CPU expert sum the same quantized product in a different order. Engine 0.1.8 replaced the warning.
• Sampling and a conversation cache. The paper said decoding was greedy and every request re-read its prompt. Both are fixed; the sampling turns out to use the same trick as TensorFold (below), and --prompt-cache keeps 6 checkpoints of about 118 MB each (src/program/generate.cpp:582).
• More hardware: AMD through HIP, an Intel Arc port, multi-GPU layer splits, a low-RAM mode.

Two things did not change. The engine is still 101,329 lines of C++ and CUDA written around one model's shape (measured, wc -l over src and include). And the llama.cpp-oracle tests are still left out: CMakeLists.txt:94 says "The test suite and the micro benchmarks live in tests/ and bench/micro/, which the published source leaves out", and ref/ still holds only load.py.

The byte budget, in code

expand

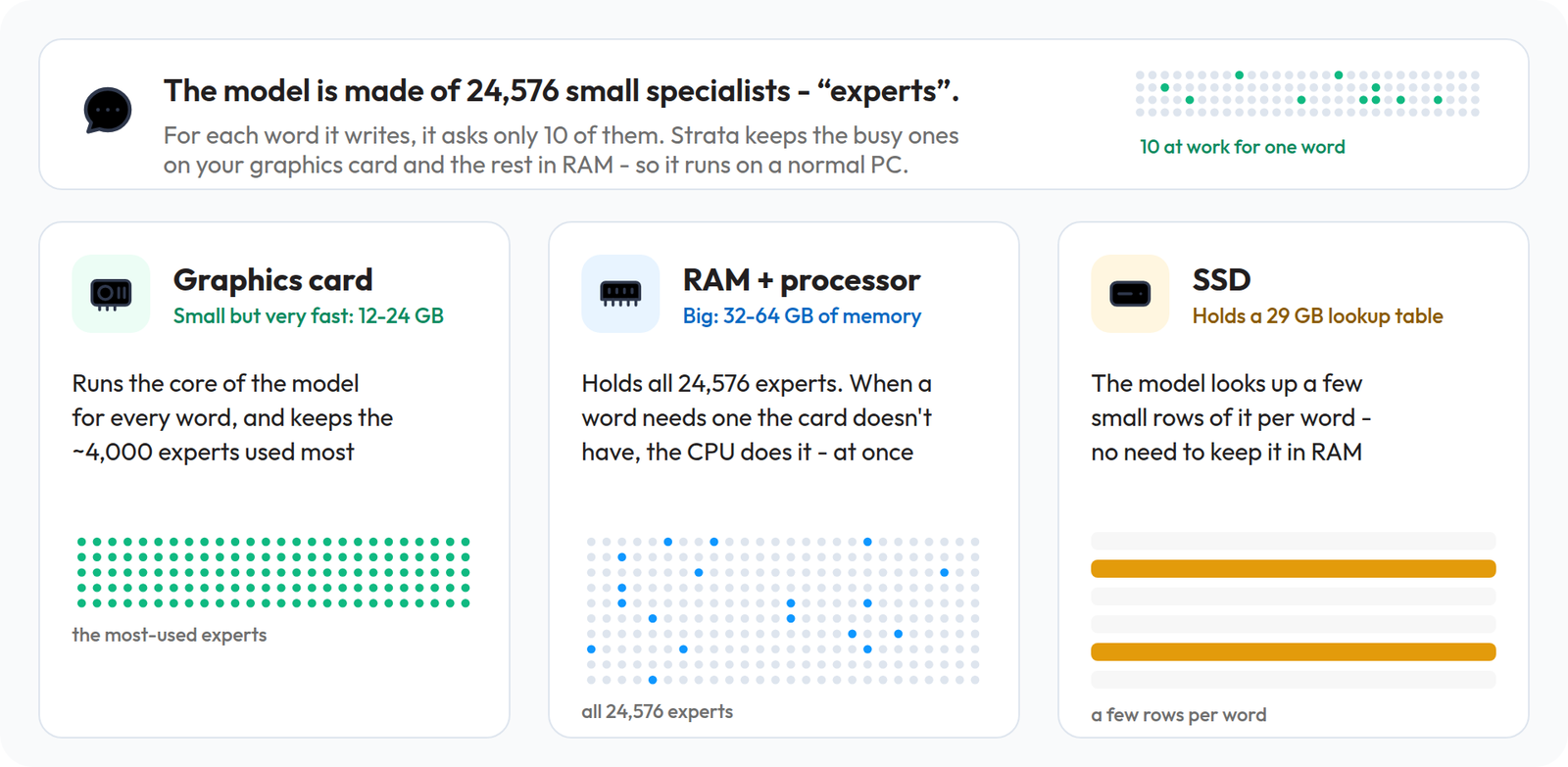

Everything below is sized from four numbers in the source. The model has 48 layers of 512 experts, each 2,560 × 640 for gate, up and down (include/strata/core/layout.hpp:28-56), and the router picks 10. The Q2_0 format stores 64 weights as 16 bytes of 2-bit codes plus an fp16 scale, so one expert is fixed at compile time:

// include/strata/kernels/cpu/expert.hpp:34-45
inline constexpr int H = 2560;      // n_embd
inline constexpr int FF = 640;      // expert intermediate width
inline constexpr int QK = 64;       // QK2_0: weights per fp16 scale
inline constexpr size_t BLOB = 3ull * (H * FF * BB / QK);   // 1,382,400

3 × 2,560 × 640 × 18 / 64 is 1,382,400 bytes, 2.25 bits a weight. The i-quant packs keep each expert's raw GGUF slices, so their blob size varies by layer. setup.py lists the arenas: 34.0 GB for Q2_0 and 50.3 GB for IQ3_S, the file the 3090 ran. Divided over 24,576 experts that is 2.05 MB per IQ3_S expert, and one token's 480 routed experts read 0.98 GB (reasoned). The first article's 0.66 GB for Q2_0 still holds.

One layer: the doorbell

A GPU running a captured CUDA graph does not stop halfway to ask the host for help. Strata needs it to: the router's 10 ids decide which experts the CPU must compute, and the CPU should start before the layer is over. The answer is a "doorbell", a few bytes of mapped pinned memory the graph writes with a kernel. The comment above the struct records how the author got there:

// include/strata/core/layer.hpp:411-419
///   * **THE WAIT MUST POLL THE DRIVER.**  Round 195: a host spin that only reads a memory location never runs
///     the kernel - 5,907,703 spins over 500 ms and the datum flips the instant `cudaStreamSynchronize` is
///     called and never before, because on Windows the driver BATCHES command submission and a memory-only
///     spin gives it no reason to flush.  So `h_seq` is read AND `cudaEventQuery` is called, which is a query
///     and not a blocking sync - P2.X3's "zero synchronization calls in the layer loop" still holds.
///   * **THE WRITE MUST BE CAPTURABLE, AND A KERNEL IS.**  Round 199: `cudaEventRecord` inside a capture is
///     SILENTLY DROPPED - 2 nodes for two kernels plus an event record, and the event never completed across a
///     41 ms graph.  A mid-graph doorbell KERNEL is captured normally, and round 209 measured the host seeing a
///     pinned handoff **0.050 ms** into a 39.8 ms graph.

So each layer is two graphs. block_layer_pre runs attention or DeltaNet, the hyper-connection read and the router, then rings the bell and computes the shared expert while the host works. block_layer_post combines the routed outputs with this layer's own router weights. The header explains why the split is in the graph and not in time: an earlier version handed layer l's CPU results to layer l+1 to win overlap, and produced "a finite, fluent, deterministic token that is not the model's" (layer.hpp:182). The consequence it draws is the design's thesis: "A per-layer CPU pool cannot be hidden behind a strictly serial residual chain". The CPU's time can only be shortened, by giving it fewer experts.

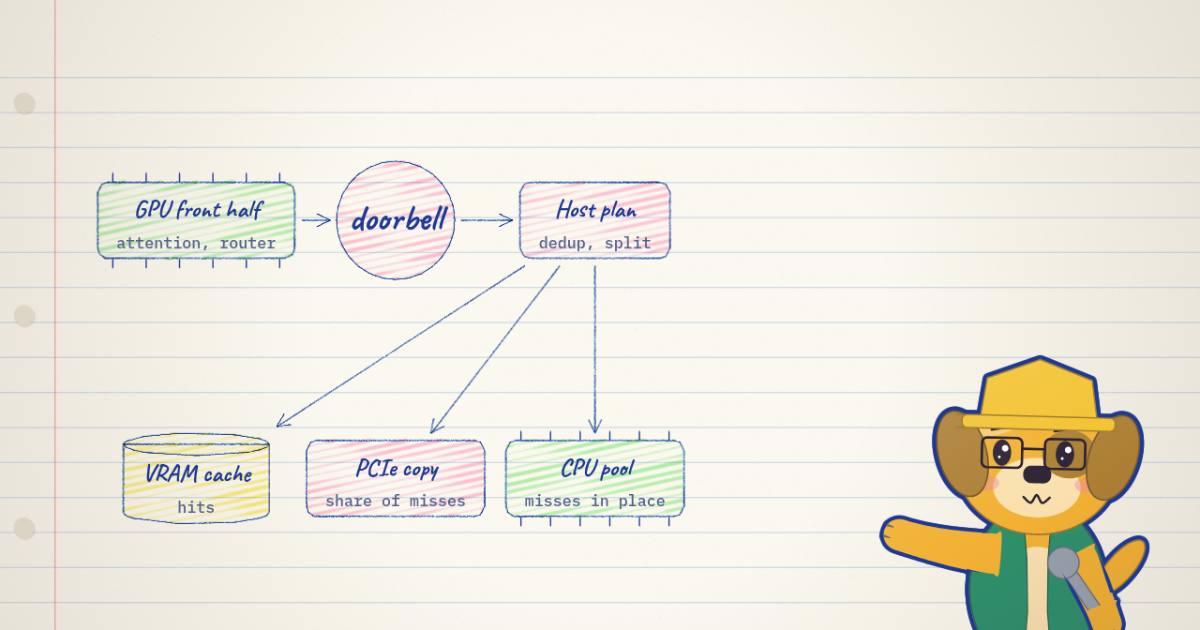

The plan: three destinations per expert

When the bell rings, the host runs expert_pool_dispatch_multi over every token of the verify window at once. It first dedups the window's routed ids, so an expert two drafts both chose is computed once for both. Then it counts the distinct misses and gives the GPU a share of them:

// src/core/expert_source.cpp:2473 and 2494
const int m = pcie_ok ? (nmiss * d.pcie_num) >> 8 : 0;
...
if (miss_rank >= nmiss - m && fetches < P.staging_cap && fetches < 64) {

pcie_num is the PCIe share in 256ths. The last m misses in routing order are copied by the GPU's copy engine into staging slots; the rest become CPU jobs. Hits are published to the GPU first, so the GPU starts on cached experts while the DMA and the CPU run. The default share depends on the pack:

// src/program/generate.cpp:550
double pcie_frac = -1.0;   ///< < 0: the model's default (0.2 direct for the Q2_0 pack, 0.55 DMA for native packs)

The reason for the difference is the paper's ninth finding: Q2_0's CPU kernel already uses the RAM's bandwidth, so DMA would steal from it; the i-quants' CPU is arithmetic-bound and leaves bandwidth free. Since 0.1.20 a probe measures the link at start and scales the i-quant share down below 20 GB/s (generate.cpp:1497: base * min(1.0, gbps / 20.0)), so an x8 slot gets about half the share. This is FreeToken's split, with a fixed share per format instead of FreeToken's per-machine optimum.

The window shape matters as much as the split. The verifier's header gives the union of a window's missed experts as a multiple of one token's: "1.75x one token's misses for T=2, 2.4x for 3, 3.05x for 4" (include/strata/core/verify.hpp:11, reported, measured on the author's decode traces). Four tokens share a fifth of their experts. That is the only sharing the first article's roofline left out.

The widget puts those constants together: the dense read, then three lanes that end with the slowest (GPU experts, the PCIe copy, the CPU's misses), then drafting and commit.

It is a ceiling. With the paper's Table 5 inputs it gives 116 tok/s for Q2_0 against 94.6 measured, and 97 for IQ3_XXS against 65.6 (reasoned). Much of the gap is structure it cannot see: each of 48 layers waits for its own slowest lane, and a sum of maxima exceeds the maximum of sums.

The CPU kernels

Q2_0 on AVX-512. The weights are codes {0, 1, 2, 3} meaning {-1, 0, 1, 2} × scale. The kernel unpacks 64 of them with one vpmultishiftqb, multiplies them against int8 activations with one VNNI vpdpbusd, and removes the offset of 1 with a correction term computed once per eight blocks:

// src/kernels/cpu/expert.cpp:155-160
inline __m512i unpack64_q2_0(const uint8_t* codes) {
    const __m128i packed = _mm_loadu_si128((const __m128i*) codes);          // 8 u16 = 64 codes
    const __m512i lanes = _mm512_cvtepu16_epi64(packed);                    // 8 qwords, 8 codes each
    const __m512i ctrl = _mm512_set1_epi64((long long) 0x0E0C0A0806040200ULL);
    return _mm512_and_si512(_mm512_multishift_epi64_epi8(ctrl, lanes), _mm512_set1_epi8(3));
}

The comment above it says the 256-bit version "spent ~12 cycles per 64-weight block", compute-bound at about 39 GB/s "while the machine streams 52" (expert.cpp:146-148, reported). Another records that the multishift argument order in Intel's guide gave 43 of 64 wrong codes.

i-quants. IQ3_XXS stores 256 weights in 98 bytes. Each group of four weights is an 8-bit index into a 256-entry grid, and signs come from a 7-bit index into a sign table. src/kernels/cpu/iq_avx512.cpp decodes 64 weights as 16 grid lookups and 8 sign lookups assembled into one 512-bit vector and a 64-bit mask, then applies them to every token of the window with a masked subtract, a maddubs and a madd. The header names the point: ggml's kernels are "single-token: every token re-decodes the weights", here "64 values are decoded once" for up to 8 tokens. A one-instruction gather of the grid was tried and measured "3-5% SLOWER than the scalar lookups on a Ryzen 5 7600 (Zen 4 gathers are microcoded)", so it is opt-in there.

The 3090 run's i5-13600K has no AVX-512. It runs the AVX2 forms in iq_avx2.cpp, with AVX-VNNI where the CPU has it ("the same integer sums, 4-25% faster rows", docs/DETAILS.md) and a gathered grid decode that turns on automatically on Alder Lake and newer P-cores. The canonical Q2_0 pack is AVX-512-only, so that machine runs only the native packs.

The pool. include/strata/kernels/cpu/pool.hpp is a flat batch, not a queue, because a layer is a barrier. Each phase (gate and up rows, then a requantize, then down rows) is cut into three tasks per thread so the tail is short, and a claim is a CAS on one 64-bit epoch | njobs | index word so a worker that woke late cannot take a job from the next batch. One core is kept for the host thread that spins on the doorbell, and the comment says why it is pinned: the pool ran at "36.32 GB/s on 5 workers with nothing else running" and at "26.9 GB/s inside the host loop" when the host was free to land on a worker's core (pool.hpp:112-114, reported).

The cache's replacement rule

At start the VRAM tier is filled from a shipped profile that ranks all 24,576 (layer, expert) pairs. Then every routed id bumps a float counter (expert_source.cpp:2444), and every fourth round the tier swaps:

// src/program/generate.cpp:6736-6748 (per layer)
if (r[e] < 0) { if (u[e] >= 2.0f && ...) cand.emplace_back(u[e], e); }   // a hot non-resident
else vict.emplace_back(u[e], e);                                          // a resident
...
for (size_t i = 0; i < nc; ++i) {
    if (cand[i].first < vict[i].first + 1.5f) break;
    swaps.push_back({cand[i].first - vict[i].first, (int32_t) l, cand[i].second, vict[i].second});
}

In words: per layer, pair the hottest missing experts with the coldest resident ones; swap only while the newcomer's decayed count beats the resident's by 1.5 and is at least 2. Across layers, keep the 96 largest gains. After each round every counter is multiplied by 0.7 (--adapt-decay, generate.cpp:555). The evicted expert stops being planned for the GPU at once; the new one is planned only once its copy has landed (apply_pending), which is the paper's tenth finding, worth 91.7 to 94.4 tok/s at 4K (reported).

It is LFU with exponential decay and hysteresis, and it is the reason the paper's profile-only hit rate of 0.50 becomes 0.72. It also has a cost the docs state plainly: the GPU and the CPU round an expert differently, so a cache that adapts to the conversation makes sampled output non-reproducible across runs unless you pin it with --adapt-every 100000.

Drafting and verifying

expand

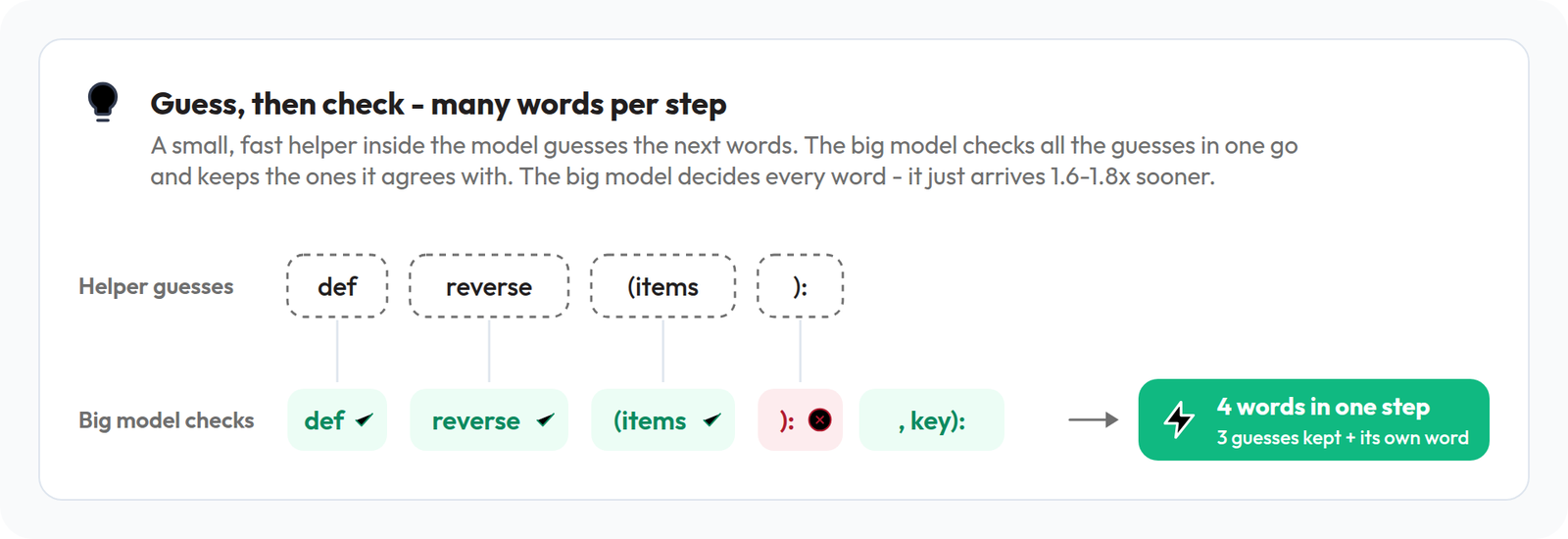

Setup launches the engine with --spec 4 --spec-min-p 0.5 (setup.py:4775): a window of up to four tokens, the last committed one and up to three drafts, and a draft enters only while the drafter is at least 50% sure. The drafter is the model's own MTP layer, fetched from the BF16 checkpoint because the GGUF files lack it. include/strata/core/mtp.hpp lists what it trades: Q8_0 projections, dense attention over the last 32,768 cells instead of the sparse selection, and "all 512 routed experts live in VRAM (708 MB)", so drafting never touches the CPU. Its head covers a token subset, 106,299 ids by default since 0.1.27 so that Chinese, Japanese and Korean get drafts too; the same vocabulary trimming the site traced in HauhauCS FastMTP.

The verifier's contract is the strong one: "Token t's argmax is what plain greedy decode would produce after token t, BIT FOR BIT" (verify.hpp:5-6). Every multi-token kernel does per token what the single-token kernel does, so a draft is accepted exactly when greedy decoding would have produced it.

Sampling keeps that property, and the way it does is worth noting. include/strata/core/coupled_draft.hpp says the verify row at position p samples with Philox keyed by the seed and p, and "a draft is kept only when it EQUALS that row's pick. The output is therefore a function of the seed alone, whatever the drafts are". That is TensorFold's keyed-Gumbel construction from the first article, arrived at independently, and it has the same price: an exact-match test accepts less often than rejection sampling. An opt-in STRATA_SPEC_COUPLED=1 makes the drafter sample with the same uniform the target will draw, to win some of that back.

How deep to draft is learned. src/spec/draft_policy.cpp:12 starts from a cost shape measured on the 5070, windows of 1, 2, 3 and 4 tokens costing 1.0, 1.35, 1.7 and 2.05 single-token rounds, and replaces it with running averages. Each extra token costs a third of a round because it brings its own misses.

142,550 tokens of context

Only 12 of the 48 layers keep a KV cache; the other 36 are Gated DeltaNet with a fixed state. Each attention layer has 2 KV heads of 256 dimensions, and setup.py:120 prices a token at 1,056 bytes per attention layer in 8-bit, 13 layers counting the drafter: 13.7 KB a token. A 142,550-token prompt is 1.96 GB of KV (reasoned), about a tenth of what a 24 GB card has left for experts.

From 64K up, setup streams it: --kv-resident 32768 keeps 32,768 cells in VRAM, 0.45 GB, and the rest in pinned RAM. The paper's sparse attention reads at most about 2,048 selected positions per query, so decode reads a bounded slice whatever the length; what streaming buys is room for experts. On the 5070 at 262K it raised the cache from 1,589 to 3,872 experts and Q2_0 from 50.9 to 62.6 tok/s (reported, docs/DETAILS.md). In the 3090 thread, needmorevram tells another user "You can get more speed by adding kv resident 32768": that is this flag.

The 3090 run, rebuilt

expand

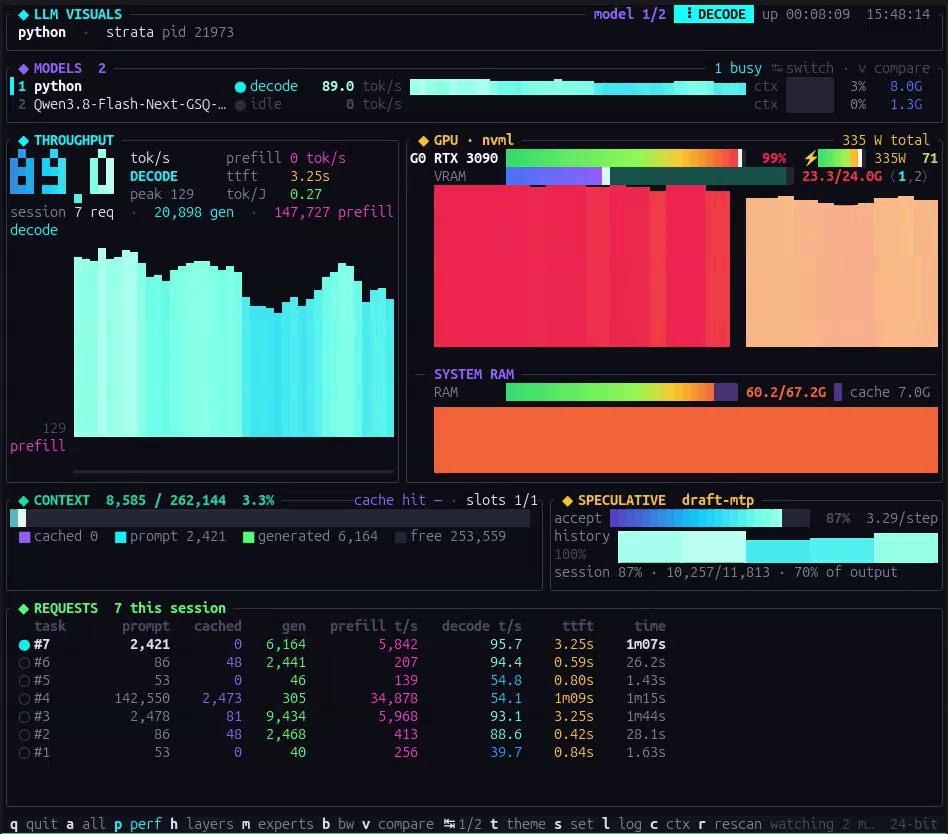

Read off this frame (reported): the drafter accepted 10,257 of 11,813 drafts, 86.8%. At 3.29 tokens per step that is 2.29 accepted drafts a window, so about 2.63 offered: most windows were full four-token windows (reasoned). The 142,550-token request generated only 305 tokens, so its 54.1 tok/s is a short sample. Its time to first token was 1 minute 9 seconds for 140,077 fresh tokens, about 2,030 tok/s of real prefill; the 34,878 in the prefill column is the error the author mentions (reasoned).

Now the window. At 97 tok/s and 3.29 tokens a step, a window takes 33.9 ms. Four tokens route to 3.05 × 480 distinct experts, 2.99 GB of IQ3_S. With the 0.55 PCIe share, PCIe and CPU at 25 GB/s each, the dense read at half of 936 GB/s (the Q2_0 file's 3.54 GB; the IQ3_S file's dense bytes are not published) and the paper's 6.3 ms of drafting and commit, the widget's 3090 preset lands at 97.9 tok/s with a hit rate of 0.70 (reasoned). If the 3090 sits as far below its ceiling as the 5070 did (0.82 for Q2_0, 0.67 for IQ3_XXS), the hit rate is 0.79 to 0.86 instead. Setup's own sizing rule leaves a 24 GB card about 19 GB for experts (setup.py: VRAM minus 5 GB), about 9,300 IQ3_S experts, 38% of them. The paper's profile-only curve gives at least two thirds at that size, and the adaptive tier adds to it, so the range is plausible. Nobody has published the number; the server's /metrics endpoint reports it as hit_rate.

The frame also answers the DDR question. In this solution the slowest lane is PCIe, 19.7 ms, with the CPU at 16.1 ms close behind, and the two together read RAM at about 27 GB/s. Dual-channel DDR4-3200 offers 51.2 GB/s at peak and DDR5-5200 83.2, so neither bus binds (reasoned). That is why "the difference was so tiny". The two levers left are the ones the paper names: more VRAM for the cache, and cheaper i-quant arithmetic on the CPU.

Other runs fit the same shape and are unverified (reported): a 4090 with 64 GB at 95 tok/s and a 3080 10 GB at 10, in replies to the Chinese post, and a 4090 D with an i9-14900KF on IQ3_S at a p50 of 111.7 tok/s (ferstar's log).

What the 80+ is, and one thing it is not

The README's own table, on the author's RTX 5070, 12 GB and Ryzen 5 7600, says 94 tok/s for Q2_0 at 4K on engine 0.1.36, and 79 for IQ2_XS and 53 for IQ3_S on 0.1.26 (reported). So "12 GB and 80+" is true for the 2-bit files at short context, on a CPU with AVX-512. It is not true for IQ3_S, the file the 3090 ran, and the same card at 128K gives 76.4 for Q2_0 on 0.1.36.

expand

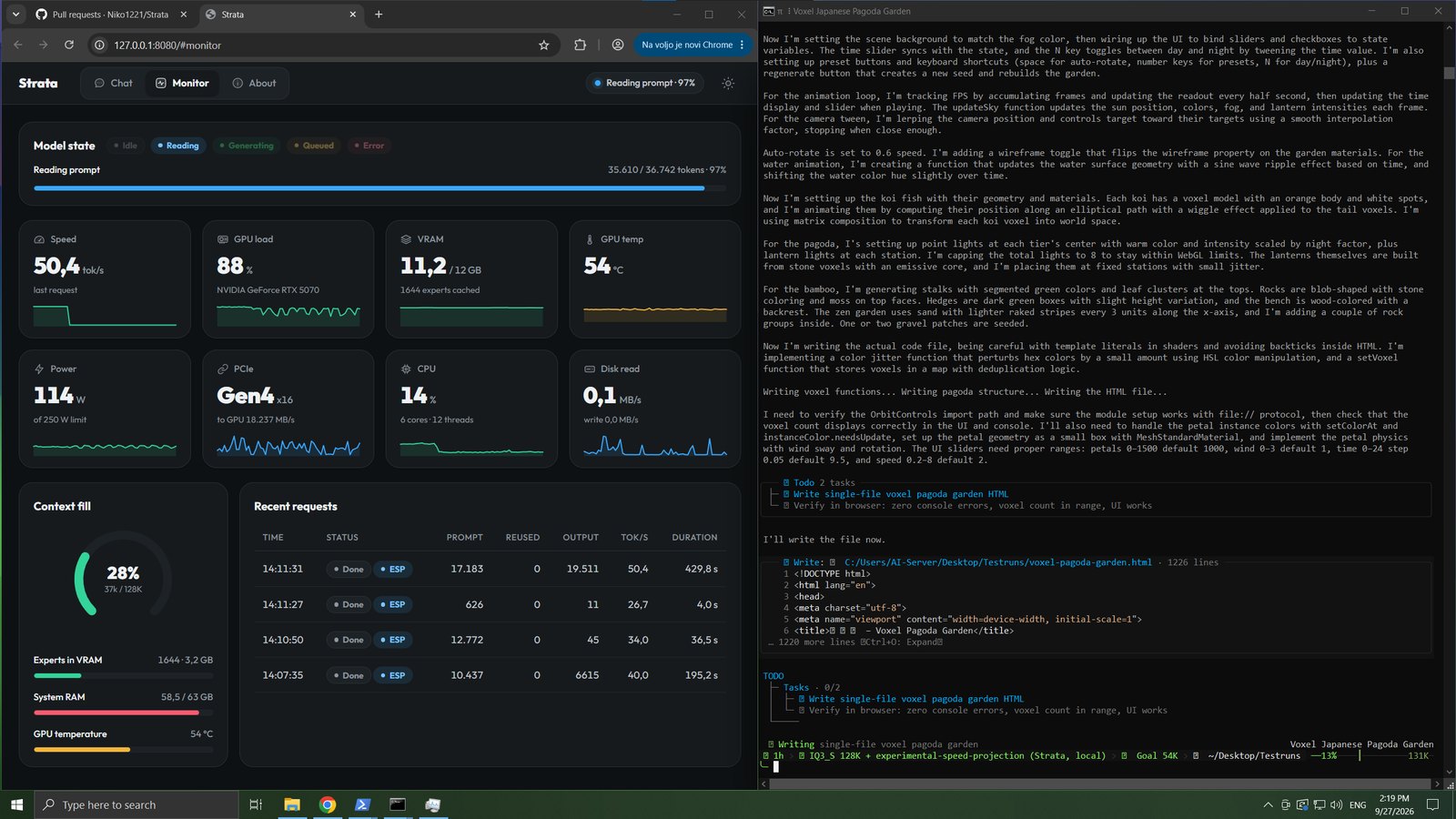

The Monitor tags those requests ESP, the "experimental speed projection". It is off by default, and its own section of docs/DETAILS.md is candid about what it is: a control vector that projects one direction out of the residual stream in layers 4-44, which its package describes as "a refusal-direction projection". It costs 0.2-0.4% per token rather than saving any, moves the top-1 token at 10% of positions, and raises perplexity on code by 15% (reported). The name says speed; the mechanism is a safety change. The docs say so, and the replies to the Chinese post show some users run it for that reason. A tok/s figure taken with it on is a measurement of a different model.

What I would take from it

The engine has a habit worth copying: the measurement that justifies a line is written in the comment above it. Reading those comments is the fastest way to understand it.

Three constants carry the design. The doorbell lets a captured graph hand work to the CPU mid-layer in 0.050 ms. The plan sends each distinct missed expert to one of three workers, with a PCIe share fixed per format and scaled by a probe. The cache is decayed LFU with hysteresis that trades reproducibility for 22 points of hit rate. Everything else, the kernels, the drafter, the KV streaming, exists to make one of those three cheaper or to give the cache more room.
