FlashAttention-1 and 2 were algorithmic. The insight — tile the computation and keep a running softmax so the N×N score matrix never touches HBM — is a statement about arithmetic that would be true on any accelerator with a memory hierarchy. You can explain it on a whiteboard.
FlashAttention-3 is not really that kind of result. The tiling is unchanged. What changed is that Hopper added hardware for asynchrony — a copy engine that runs independently of the SMs, warpgroup-wide matrix instructions, and an instruction that lets one warpgroup hand its registers to another — and FA3 is the work of rewriting attention as a schedule that keeps those units all busy at once. It is much less portable and much more interesting than it sounds.
This is a read of the hopper/ directory, where the tuning constants are visible and, once you multiply them out, unusually revealing.
| What it is | the Hopper-specialised forward and backward attention kernels in Dao-AILab/flash-attention |
| Requires | H100 / H800, CUDA ≥ 12.3 (12.8 recommended), still labelled a beta release |
| Precision | FP16 / BF16 forward and backward · FP8 forward only |
| The three ideas | warp specialization · GEMM–softmax overlap ("pingpong") · block-quantized FP8 |
| Hardware it leans on | TMA (async copy engine) · WGMMA (warpgroup MMA) · setmaxnreg |
| Mainloop | mainloop_fwd_sm90_tma_gmma_ws.hpp, 1,717 lines |
| Tile schedulers | five — single, static persistent, dynamic persistent, varlen dynamic persistent, and a longest-processing-time one for the backward pass |
| Successor | FlashAttention-4, written in CuTeDSL, targets Hopper and Blackwell — pip install flash-attn-4 |
Why a schedule, and not an algorithm
The arithmetic of attention has an awkward property: it is two matrix multiplications with a softmax wedged between them, and the softmax is not a matrix multiplication. On an H100 the tensor cores that execute WGMMA and the multi-function unit that evaluates the exponential are separate hardware. Within a single warp the dependency chain forces them to alternate — you cannot softmax scores that do not exist yet, and you cannot start the second GEMM without the probabilities.
So a straightforward implementation leaves one of the two most expensive units in the machine idle essentially all the time. That is the problem FA3 is solving, and both of its headline techniques are answers to it.
The tensor cores and the unit that evaluates the exponential are separate hardware, and the dependency chain inside one warp forces them to take turns: you cannot compute the softmax of a score matrix that has not been produced, and you cannot start the next GEMM until the probabilities exist. In FA2 that shows as a timeline where only one colour is ever active.

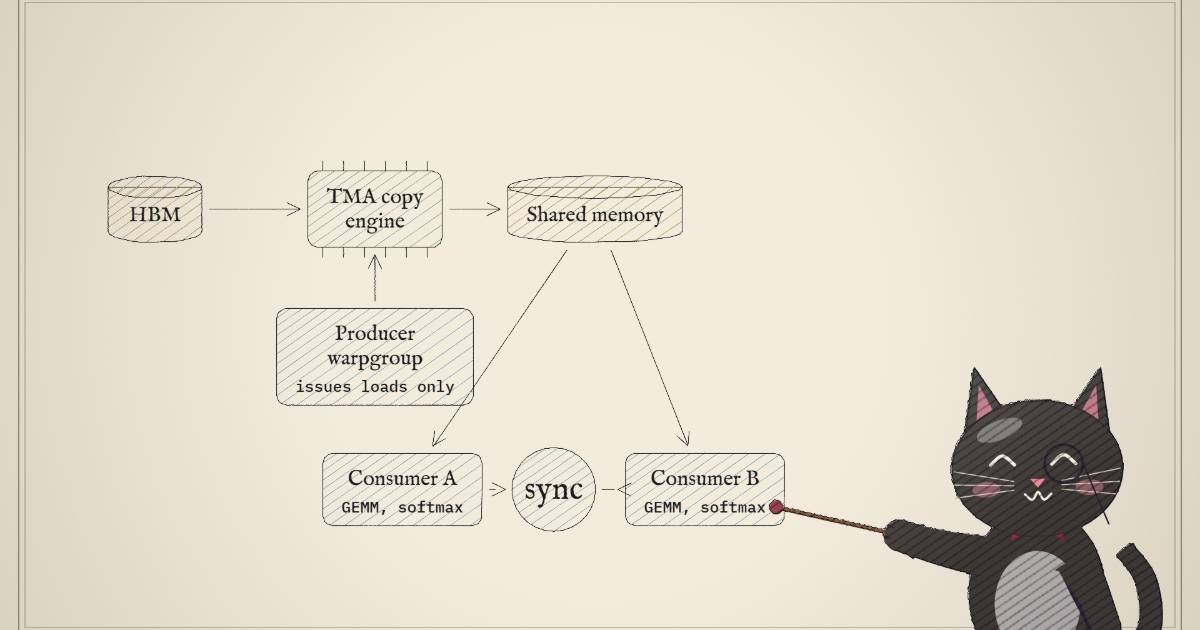

Warp specialization fixes the first stall. A dedicated producer warpgroup issues TMA loads for tile i+1 while the consumer works on tile i, so the memory pipeline stops being on the critical path — and, because it is a separate warpgroup, it can be given 24 registers while the consumers keep 240.
Pingpong fixes the second. Two consumer warpgroups are staggered by one phase against a named barrier so that one is in softmax while the other is in WGMMA. Neither warpgroup is any faster; the tensor cores simply stop waiting. The heuristic that turns this on is oddly specific and worth quoting, because it inverts by data type: non-FP8 wants kHeadDim ≤ 128, FP8 wants kHeadDim ≥ 128. The comment above it says only “these are tuned for speed. They don’t affect correctness.”
Step through the three modes. The first is FA2's shape: one warpgroup, everything in order, one colour active at a time. The second adds a producer warpgroup that does nothing but issue TMA loads for the next tile — the memory pipeline stops being on the critical path. The third staggers two consumer warpgroups against a named barrier so that while one is in the softmax the other is in the GEMM.
Nothing got faster. The units simply stopped taking turns.
The barrier calls are literally named for it in the source — warp_scheduler_barrier_sync() and warp_scheduler_barrier_arrive() — and the predicate that turns them on is worth quoting because it is so nakedly empirical:
// These are tuned for speed. They don't affect correctness.
static constexpr bool UseSchedulerBarrier = (IntraWGOverlap
? (NumMmaWarpGroups >= 2) && (!Is_FP8 ? kHeadDim <= 128 : kHeadDim >= 128)
: NumMmaWarpGroups == 2)
&& !LargeHeadDimV;Note the inversion. For FP16 the overlap pays off at head dimensions at most 128; for FP8, at at least 128. That is not a typo — FP8 roughly halves the GEMM time without halving the softmax time, so the imbalance the barrier is correcting for moves to the other side of the same threshold.
The register file, to the register
Warp specialization is usually explained as latency hiding. There is a second reason for it that matters more, and it is visible in four constants.
A GPU thread’s register allocation is normally uniform across the block, and it is the binding constraint on attention kernels: the accumulator for a tile of the output, the running softmax statistics and the operand fragments all live in registers, and when they do not fit the compiler spills to local memory and the kernel loses.
Hopper’s setmaxnreg lets a warpgroup return registers to the pool so another can exceed the uniform share. That is only useful if warpgroups do different work — which is why FA3 splits them into one producer that does nothing but issue loads and up to three consumers that do nothing but arithmetic. The producer needs almost no state; with TMA it needs 24 registers, because the copy engine does the addressing in hardware.
Now read the totals. Three warpgroups land on exactly 65,536 registers — the entire file, to the register, and both two-warpgroup configurations on 64,512. Switch between TMA and cp.async and watch the producer take sixteen more registers per thread while the consumers give up eight each to pay for it. These constants were not chosen for elegance; they are the largest values that fit.
A thread's register allocation is normally uniform across a block, and registers are the binding constraint on an attention kernel — the output accumulator, the running softmax statistics and the operand fragments all live there, and a kernel that spills has already lost. Hopper's setmaxnreg lets a warpgroup return registers to the SM's pool so another can take more than its uniform share, which is only useful if warpgroups do different jobs.
So FA3 gives the producer as little as possible and the consumers as much as possible:
static constexpr uint32_t LoadRegisterRequirement =
NumMmaWarpGroups == 1 ? 56 : (NumMmaWarpGroups == 2 ? (Use_TMA_KV ? 24 : 40) : 32);
static constexpr uint32_t MmaRegisterRequirement =
NumMmaWarpGroups == 1 ? 256 : (NumMmaWarpGroups == 2 ? (Use_TMA_KV ? 240 : 232) : 160);Multiply those out against an SM's 65,536 registers and the tuning becomes obvious. Three MMA warpgroups: 128 × 32 + 384 × 160 = exactly 65,536. Two with TMA: 128 × 24 + 256 × 240 = 64,512, which is 98.4%. These are not round numbers that happened to work; they are the largest allocations that fit.
The TMA-versus-cp.async pair is the neatest illustration of the whole idea. With TMA the copy engine computes addresses in hardware, so the producer needs 24 registers. Without it the producer must compute its own, needs 40 — and the consumers give up 8 each to pay for the difference. The 240 in that line is a direct consequence of the 24.
FP8 is a different kernel
The usual framing of low precision is a knob you turn. In this mainloop it is a recompilation.
The story told about low precision is that it is a knob. In this kernel it is a recompilation: three of these four differences are static type switches or a bare static_assert, so an FP8 FlashAttention-3 and an FP16 one are not the same code with a different accumulator. They are different kernels that happen to share a file.
The V transpose is the one that surprises people. WGMMA wants the second GEMM’s operand K-major, and a row-major V is not, so the kernel physically transposes V in shared memory using LDSM.T and STSM — for FP16 it does no transposing at all. If you can hand it a column-major V, V_colmajor skips the whole thing, which is a real and rarely-mentioned reason to care how your KV cache is laid out.
And the descale tensors are the quiet quality story. E4M3 carries roughly four bits of mantissa; one scale for a whole tensor throws most of that away when heads differ in magnitude, which they reliably do. Per-head scaling is why FP8 attention here is usable rather than merely fast — and it is the sort of thing that never appears in a speedup chart.
Three of the four differences in that control are static type switches or a bare static_assert rather than a runtime branch, which is the technical way of saying an FP8 FlashAttention-3 and an FP16 one are different kernels that share a file.
The one that catches people is the V transpose. WGMMA wants the second GEMM's operand K-major, and a row-major V is not:
static constexpr bool Transpose_V = Is_FP8 && !V_colmajor;
static constexpr GMMA::Major MmaMajorV =
!Is_FP8 && !V_colmajor ? GMMA::Major::MN : GMMA::Major::K;So for FP8 the kernel physically transposes V in shared memory using LDSM.T and STSM, with a 64×32 or 32×64 block depending on whether kHeadDimV is a multiple of 64. For FP16 it does no transposing at all. And if you can hand it a column-major V, V_colmajor skips the whole thing — a real, rarely-mentioned reason to care how your KV cache is laid out.
The quality story is in the descale pointers:
float const* ptr_q_descale, *ptr_k_descale, *ptr_v_descale;
StrideDescale const stride_q_descale, stride_k_descale, stride_v_descale;Those strides are what make FP8 attention usable rather than merely fast. E4M3 carries about four bits of mantissa; a single scale for a whole tensor throws most of that away when heads differ in magnitude, which they reliably do. Having a stride means the scale varies per batch and per head. It is the least glamorous line in the file and it is doing most of the numerical work.
There is also a constraint that propagates a long way upstream:
static_assert(!(!MmaPV_is_RS && Is_FP8), "MmaPV must be RS if FP8");The probabilities must be in registers when the second GEMM issues. That is not a preference the kernel can fall back from — it constrains how the softmax output is staged, which interacts with the register budget above, which interacts with how many warpgroups you can afford. The pieces are not independent.
Five schedulers
The part of the repo that gets the least attention and does the most for real workloads is tile_scheduler.hpp, which contains five distinct scheduler classes:
SingleTileScheduler— one tile per block, no persistenceStaticPersistentTileScheduler— persistent blocks, compile-time work assignmentDynamicPersistentTileScheduler— persistent blocks pulling work from a counterVarlenDynamicPersistentTileScheduler— the same, for ragged batchesSingleTileBwdLPTScheduler— longest-processing-time first, for the backward pass
That last one is the tell. In the backward pass with causal masking, tiles have wildly different amounts of work — an early query tile attends to almost nothing, a late one to everything — so scheduling them in order leaves whole SMs idle at the tail. Longest-processing-time-first is a classic list-scheduling heuristic, and finding it inside an attention kernel is a good reminder that "make attention fast" is, past a certain point, a load-balancing problem rather than a numerical one.
The varlen scheduler exists for the same reason at batch level: real serving traffic is ragged, and a scheduler that assumes uniform sequence lengths wastes the difference.
What is actually in the box
Worth being precise, because the README's headline understates the surface area. The forward path supports variable-length batches, paged KV, GQA packing (PackGQA), split-KV with a separate combine kernel, attention softcapping, and appending to a KV cache in-place — the Python surface is flash_attn_func, flash_attn_varlen_func, flash_attn_qkvpacked_func, flash_attn_with_kvcache, flash_attn_combine and get_scheduler_metadata.
That last one is a small thing worth noticing: the scheduler's metadata computation is exposed so a serving framework can compute it once and reuse it across steps rather than paying for it every call. It is the kind of API that only exists because somebody was profiling a real inference server.
And the honest status line: FA3 is still labelled a beta release in the README — "for testing / benchmarking before we integrate that with the rest of the repo" — with FP8 forward only, no FP8 backward. It has been in that state for a while, which tells you something about how much of this is Hopper-specific work that does not generalise cleanly.
FlashAttention-4, and why the approach changed
The same repo now ships FlashAttention-4, and the interesting thing about it is the implementation language: it is written in CuTeDSL rather than C++ templates, and targets Hopper and Blackwell.
That is a direct response to the problem this article is about. FA3 is a schedule tuned against one chip, expressed as hundreds of constexpr predicates over head dimension, warpgroup count, data type and layout — which is why UseSchedulerBarrier looks the way it does. Every new architecture means rederiving those by hand. A DSL that can express the schedule and retarget it is the natural next move once you have written that predicate more than once.
The ledger
What FA3 actually contributes. Not an algorithm — a demonstration that on hardware with independent async units, attention performance is dominated by whether those units are simultaneously busy, and that getting them there requires restructuring the kernel around roles rather than around the maths. Warp specialization, GEMM–softmax overlap, and an FP8 path with per-head scaling that keeps the numerics usable.
What it costs. The register constants land on exactly 65,536 because someone tuned them to the boundary; they are correct for H100 and meaningless anywhere else. The scheduler barrier heuristic inverts by data type with no derivation offered beyond "tuned for speed". FP8 is a separate compilation with a static_assert that reaches into unrelated parts of the kernel. This is extremely good engineering and it is not portable, which is precisely why FA4 abandoned the expression medium.
Still open. FP8 backward does not exist. The beta label has not come off. And the broader question the repo poses without answering: if every architecture generation needs its schedule rederived, the durable artifact is the DSL, not the kernel — which makes FA3 less a destination than the most carefully documented example of the problem.
