2026-08-26 · 21 min · inference · systems · vllm · serving · open-source
The sentence everyone uses for vLLM is "PagedAttention and continuous batching." It was a good description in 2023. Today those are two ideas inside 858,189 lines of Python across 2,265 files, and neither of them is where the work is.
This is a read of the repo at 17da485, and specifically of vllm/v1/ — the rewritten engine that is now the only engine. The interesting thing is not how much there is. It is what there is a lot of, and what that says about who is actually driving the design.
| Scale | 2,265 Python files · 858,189 lines · Apache 2.0 |
| The engine | vllm/v1/ — 360 files, 149,937 lines |
| V0 | deleted. vllm/engine/llm_engine.py is now 7 lines aliasing the v1 class |
| Model architectures | 280 files in vllm/model_executor/models/ |
| Attention backends | 23 in vllm/v1/attention/backends/ — six of which are not attention |
| Speculative decoding | 17 files in vllm/v1/spec_decode/, three named after specific models |
| KV transfer connectors | 19 entries, including third-party systems (LMCache, Mooncake, NIXL, hf3fs) |
| Quantization | 30 method names in one Literal, two already deprecated |
| Kernels | 251 CUDA/C++ files, 104,377 lines under csrc/ |
| New this year | rust/ — 309 .rs files, 110,352 lines, 15 crates |
| Block size | 16 tokens, content-addressed by SHA-256 |
The problem PagedAttention was actually solving
The paper (arXiv 2309.06180) is usually remembered for the attention kernel. The kernel is the least interesting part. The argument is a memory-accounting one, and it is worth restating precisely because the whole design follows from it.
A KV cache entry is per token, per layer, per KV head. If you allocate it as one contiguous run per request, you have to size that run before you know how long the answer will be — so you reserve the worst case. Everything you reserved and did not use is dead for the life of the request. The paper measured it:

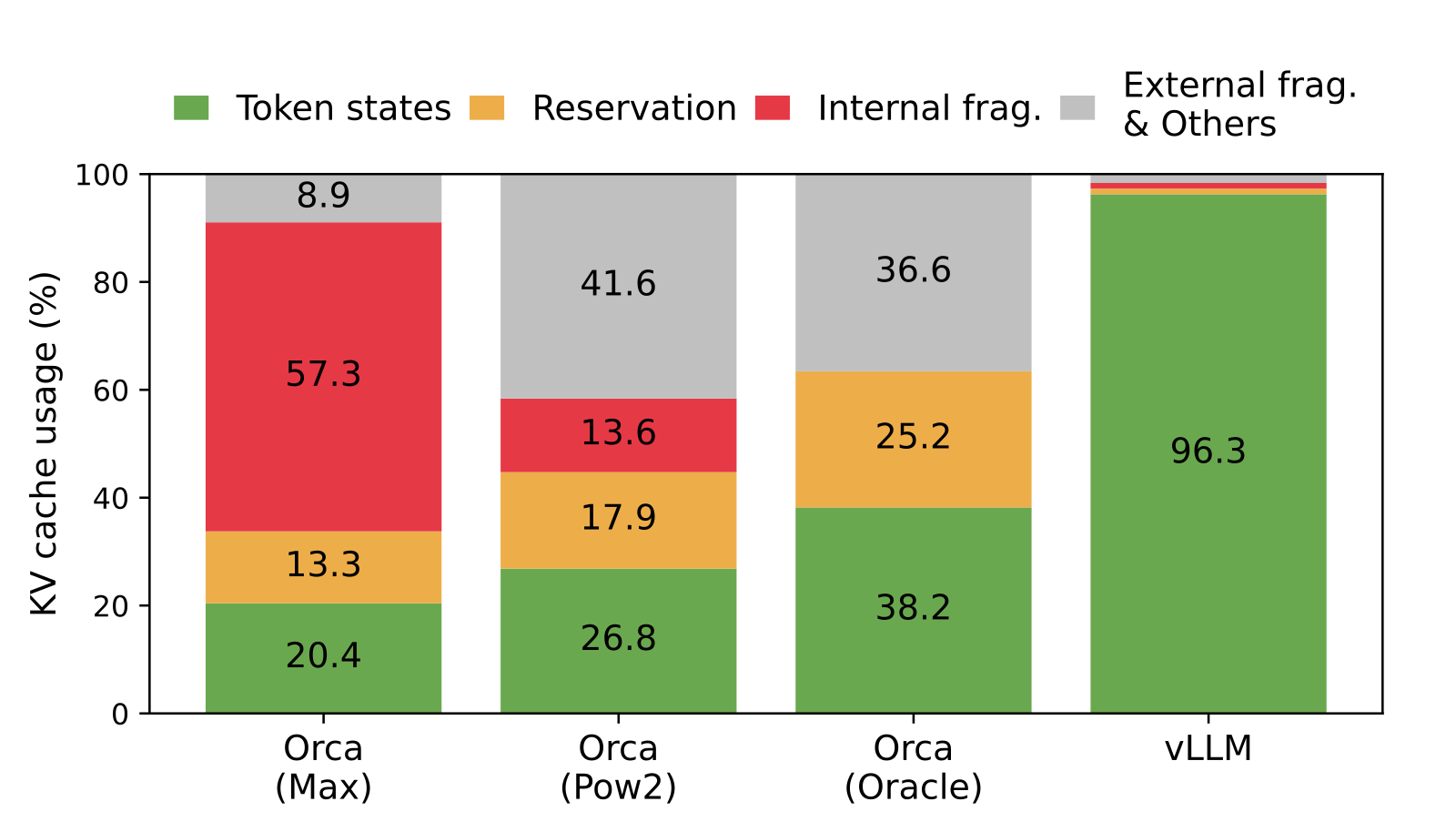

Note what the middle bars are. "Orca (Oracle)" is the same allocator given the true output length in advance — a cheat no real server gets — and it still only reaches 38.2%. The waste is not a bad heuristic. It is the contiguity requirement.
This is the whole PagedAttention argument as arithmetic. One block id costs layers x 16 x kv_heads x 2 x head_dim x dtype_bytes — for Llama-3.1-8B that is 2.0 MiB, and a token costs 128 KiB. vLLM divides the profiled free memory by that block cost and gets a fixed pool of block ids (kv_cache_utils.py:1362).
An allocator that needs one contiguous run per request has to reserve the worst case it might reach, so the reservation is dead memory for the whole life of the request. A paged allocator hands out one block at a time and wastes at most fifteen tokens in the tail block — internal fragmentation — which is bounded, not proportional.
The win is entirely a function of how wrong the reservation is. Drag the reservation down to the sequence length and paging buys nothing. Drag it to the model’s advertised context window — which is what a naive allocator has to assume, because nobody tells the server how long the answer will be — and it buys an order of magnitude. That gap is why every serving engine is paged now.

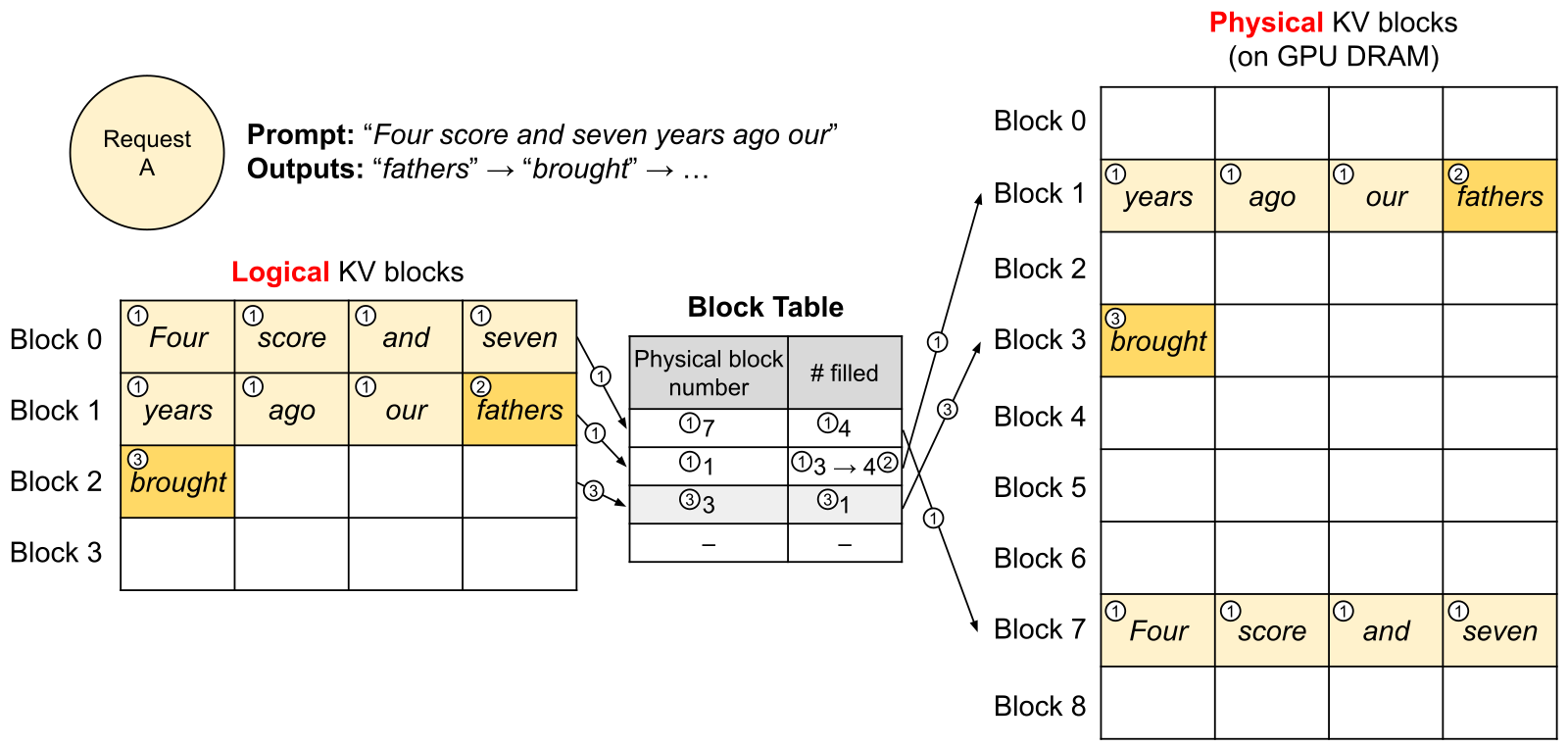

The fix is the operating-systems one: fixed-size blocks and a table that maps a request's logical block i to some physical block anywhere in the pool.
In the v1 worker that table is not a Python structure. vllm/v1/worker/block_table.py allocates a dense int32 tensor of shape [max_num_reqs, max_num_blocks_per_req] plus an int64 slot_mapping of length max_num_batched_tokens, both pinned and mirrored to the device. The block table is a tensor the kernel indexes, which is the only way this is cheap enough to redo every step.
The block size is 16, and it has been 16 since the paper. vllm/config/cache.py:79 still reads DEFAULT_BLOCK_SIZE: ClassVar[int] = 16, and the paper's own justification survives verbatim in §7.2: block sizes 16–128 tie on ShareGPT, larger sizes hurt on Alpaca because the sequences get shorter than the block, and "accordingly, vLLM sets its default block size as 16." Three years and one full rewrite later, nobody found a reason to move it.
Checking the 96.3%
That figure is the paper's headline and it is the sort of number worth doing the arithmetic on. With 16-token blocks, the only waste vLLM has left is the tail of the last block — on average about 7.5 tokens per sequence. So utilisation should be for an average sequence of tokens. Solve for and you get tokens, which is the right order for a ShareGPT/Alpaca mix. The number is arithmetic, not marketing, and it checks out.
What it isn't is a statement about memory efficiency. It measures the share of the KV region holding live token state, at saturation. Two things make it a strange metric to carry into 2026. First, vLLM pre-allocates the whole pool at startup — gpu_memory_utilization defaults to 0.92 and the engine divides the profiled free memory by the per-block cost once (kv_cache_utils.py:1362), so under light load that pool sits mostly empty regardless. Second, prefix caching is now on by default, and a cached block with refcount zero holds KV that belongs to no running request. By the paper's accounting that is waste. In practice it is the single largest throughput win the engine has. The metric that motivated the design would now score its best feature as fragmentation.
The block pool, and the two tricks in it

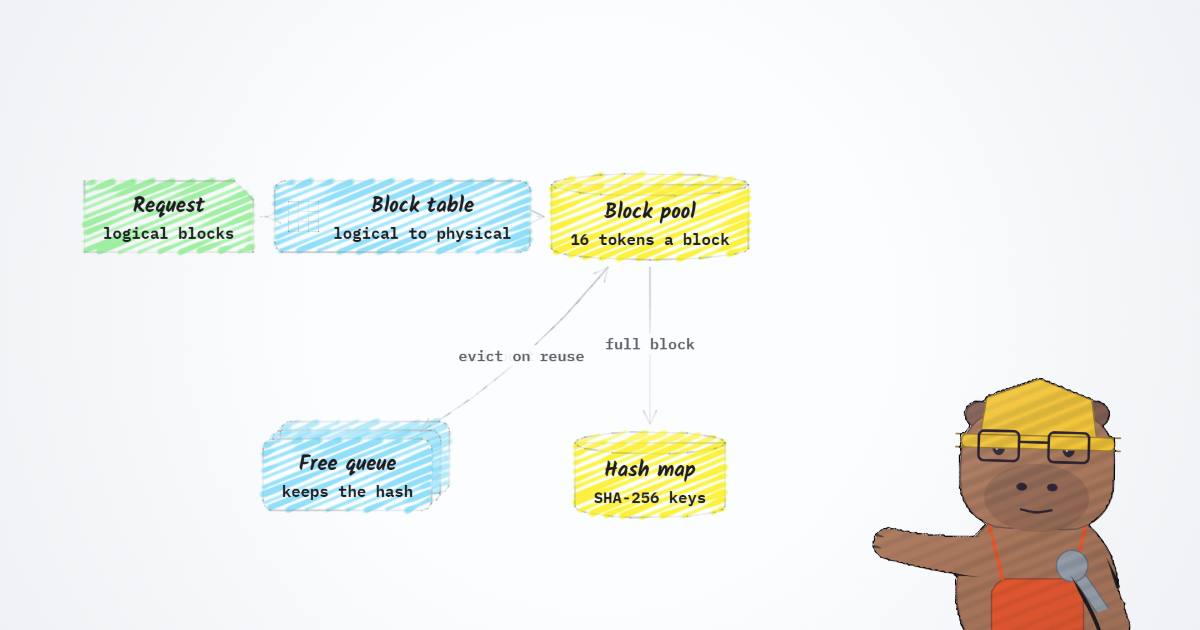

Paged KV cache is the original idea and still the foundation. What that indirection became is more interesting than what it was for.
PagedAttention’s original pitch was about fragmentation: allocate KV in fixed blocks and a request no longer needs one contiguous reservation sized for its worst case. Prefix caching is what that indirection turns into once the blocks are content-addressed. Each full block is hashed, the hash is looked up, and a hit bumps a reference count instead of allocating.
Two details in the implementation are worth more than the diagram. Blocks whose refcount drops to zero are not freed — they go back into an eviction-ordered queue while keeping their hash, so a cached prefix stays reusable right up until something else actually needs the memory. And there is a null block: a real block popped off the free queue at startup whose refcount is deliberately not maintained, so that “this slot has no block” can be an ordinary block id rather than a special case threaded through every kernel.
The sliders make the economics obvious. Prefix caching pays in exact proportion to how much of your traffic shares a prefix — which, for a system prompt, a few-shot preamble or an agent replaying its own transcript, is most of it.
Once blocks are fixed-size and addressed through a table, they can be content-addressed. vllm/v1/core/kv_cache_utils.py defines BlockHash as raw bytes — SHA-256 — and packs the KV-cache group id into a key:
BlockHash = NewType("BlockHash", bytes)
BlockHashWithGroupId = NewType("BlockHashWithGroupId", bytes)
def make_block_hash_with_group_id(block_hash, group_id):
return BlockHashWithGroupId(block_hash + group_id.to_bytes(4, "big", signed=False))Two implementation details in block_pool.py are worth more than the concept.
Freed blocks keep their hash. A block whose refcount hits zero goes back into free_block_queue — an eviction-ordered queue — while staying in cached_block_hash_to_block. Eviction happens lazily, in get_new_blocks, at the moment something else actually takes the memory (_maybe_evict_cached_block). So a cached prefix remains reusable right up until it is overwritten. "Free" and "evicted" are different states, and conflating them is how naive implementations throw away cache they were still holding.
There is a null block. At construction:
self.null_block = self.free_block_queue.popleft()
self.null_block.is_null = TrueA real block, deliberately burned, so that "this slot has no block" is an ordinary block id rather than a sentinel threaded through every kernel and index computation. The comment notes its refcount is not maintained and "needs special care." Spending 16 tokens of KV cache to delete a special case from the hot path is a good trade, and the kind of thing you only find by reading.
Two more things in the queue itself, which is where the taste is. FreeKVCacheBlockQueue is a hand-rolled doubly linked list built out of prev_free_block / next_free_block fields on the blocks themselves, with fake head and tail nodes, and its docstring says why: it needs O(1) removal from the middle, and "this class does not allocate any Python objects when manipulating the linked list." Somebody profiled the allocator and found the garbage collector.
And free_blocks sorts what it is given into two piles:
if block.block_hash is None or not self.enable_caching:
# LIFO reuse of non-cached blocks for better GPU locality.
blocks_to_evict_first.append(block)
else:
# FIFO reuse of cached blocks for LRU eviction behavior.
blocks_to_evict_last.append(block)A block with no hash can never produce a cache hit, so it is worthless to keep and goes to the front of the free queue, LIFO, where it will be reused immediately and stay warm. A block with a hash goes to the back, FIFO, where it survives as long as possible. One queue, two policies, chosen per block by whether the block is capable of being useful later.
The caller then hands blocks over in reverse: free_blocks(reversed(pop_blocks_for_free(request_id))). The last block of a request is offered for eviction first, its parent last — which is exactly right, and the reason is the next section.
What a block hash actually is
A block hash in vLLM is not a hash of the block. It is a hash of (parent_hash, block_tokens, extra_keys), and the walk in get_request_block_hasher feeds each result into the next block as the parent. So a hash does not identify sixteen tokens — it identifies a prefix ending at that boundary.
Turn the chaining off and the difference is not academic. Both requests end in translate / to french: / hello, so those blocks hash to the same key even though one of them was computed after “a helpful assistant” and the other after “a pirate”. A hit there hands the second request KV that encodes the wrong context and the wrong absolute positions, and nothing downstream can tell.
Chaining also buys the optimisation that makes the lookup cheap. Because a differing prefix guarantees a differing hash at every later boundary, the matcher can stop dead at the first miss — “A missing block implies every later block misses too (chained hashes)” in single_type_kv_cache_manager.py. A content-only hash would make that early exit unsound, and checking every block instead would still give you the wrong answer.
Same reason extra_keys exists: a LoRA id, a multimodal input hash, and a per-tenant cache_salt all go into the first block’s key, so two tenants sending the same prompt cannot read each other’s cache — or measure each other’s latency.
hash_block_tokens does not hash a block:
def hash_block_tokens(hash_function, parent_block_hash, curr_block_token_ids, extra_keys):
if not parent_block_hash:
parent_block_hash = NONE_HASH
return BlockHash(hash_function((parent_block_hash, curr_block_token_ids_tuple, extra_keys)))It hashes a triple, and get_request_block_hasher walks the request one window at a time carrying the result forward (prev_block_hash_value = block_hash). So a block hash identifies a prefix ending at a boundary, not sixteen tokens.
The reason is the obvious one and worth stating anyway: KV is position-dependent and context-dependent. The same sixteen tokens after "you are a helpful assistant" and after "you are a pirate" have different K and V, and a content-only hash would happily serve one for the other with nothing downstream able to notice.
The chaining also buys the optimisation that makes lookup cheap. From single_type_kv_cache_manager.py:733:
# Phase 1: longest run of cached full blocks from the start. A missing
# block implies every later block misses too (chained hashes).That early exit is only sound because the hashes chain. It also explains the reversed free order above: since a child hash can only be hit through its parent, a surviving child whose parent has been evicted is unreachable memory. Evicting the tail first keeps the free list honest.
extra_keys is where the multi-tenancy lives. LoRA ids, multimodal input hashes, and a per-request cache_salt are folded into the key, the salt only on the first block. Two tenants sending an identical prompt with different salts cannot read each other's cache — or time it.
This is the exact point where vLLM and SGLang diverge. SGLang keeps a radix tree over token prefixes; vLLM keeps a flat hash map of chained block hashes. For matching a prefix the two are equivalent, and vLLM's is cheaper. The tree wins on divergence: when a request forks, SGLang splits one node and keeps one refcount, while vLLM's map has no notion of "below" a prefix and so cannot cascade an eviction up the trunk. vLLM's answer to forking is narrower and lives in single_type_kv_cache_manager.py: a partial prefix-cache hit redirects the shared tail block into a private copy-on-write block (_apply_cow), retaining both endpoints until the worker has run the copy. That handles a sequence that shares part of a block, not a conversation that forks five ways.
The environment variable that shouldn't have to exist
My favourite thing in the repo is a constant:
DEFAULT_NONE_HASH_SEED = "vllm-none-hash"with a comment pointing at issue #12621 and logic that reads PYTHONHASHSEED if it is set, falling back to a fixed seed otherwise. ExternalBlockHash is documented as existing "for reproducible prefix-cache block hashing."
The reason is that Python randomises string hashing per process by default, as a hash-flooding defence. That is fine until your prefix cache key has to mean the same thing in two workers — at which point a security feature becomes a correctness bug, and the fix is to pin the seed and document why. It is a small thing that tells you a great deal about the difference between a research prototype and a system people run across processes.
Six of the attention backends are not attention
vLLM is still described, four years on, as “PagedAttention and continuous batching.” Those are two ideas in an 858,000-line codebase, and neither is where the work is any more.
Click through the four groups and a pattern shows up. Almost all of this exists because the models changed, not because the serving got cleverer. Six of the twenty-three “attention” backends do not compute attention — they run gated delta nets, Mamba, or short convolutions, because the checkpoints shipping now are three-quarters recurrent layers with full attention sprinkled in. Three of the speculative-decoding proposers are named after individual models. And the KV connector directory contains other people’s systems.
That is what an inference engine becomes when it succeeds: not a good implementation of one idea, but the place where every lab’s architectural opinion has to be reconciled with every other lab’s. The 280 model files are the cause; the other three directories are the bill.
Click through those four groups, because the shape is the whole argument.
There are 23 files in v1/attention/backends/, and among them are gdn_attn.py, linear_attn.py, mamba1_attn.py, mamba2_attn.py, short_conv_attn.py and an mla/ directory. None of those compute attention. They are gated delta networks, linear attention, two generations of Mamba, short convolutions, and latent-KV attention — and they live in the attention directory because from the engine's point of view the question is not "what is the maths" but "what state does this layer need me to hold, and how does it grow."
That is a direct consequence of what shipped this year. A model like GLM-5.3-Flash has 34 linear layers and 11 sparse ones; Qwen3.8-Flash-Next has 36 gated-delta layers and 12 sparse ones. A serving engine now has to hold a growing KV cache for some layers of a model and a fixed-size recurrent state for others, in the same forward pass, and schedule memory for both. The kv_cache_coordinator.py (979 lines) and single_type_kv_cache_manager.py (1,972 lines) files in v1/core/ exist for exactly that reason.
The seams show in the block-size code. resolve_kv_cache_block_sizes has to compute two block sizes for a hybrid model — an LCM over the groups for the scheduler's token alignment, and a GCD for the granularity at which block hashes are taken — then backs off entirely if a Mamba group is not in "align" cache mode, because that breaks divisibility. There is a prefix_match_unit config knob whose whole job is to let a prefix hit land inside a 1024-token hybrid block. Paging assumed every layer wanted the same page size, and 2026 broke that assumption.
The speculative-decoding directory tells the same story from a different angle. Seventeen files, including ngram_proposer.py and ngram_proposer_gpu.py, eagle.py, medusa.py, suffix_decoding.py, draft_model.py — and then gemma4.py, step3p5.py, dflash.py. Named after individual models. Speculative decoding stopped being a technique and became a per-architecture integration surface, because MTP heads now ship with the weights and every lab draws the draft path slightly differently.
The scheduler, and what it has to balance now
v1/core/sched/ holds the scheduler, and scheduler.py alone is 3,056 lines. The comment at the top of schedule() is the single most useful thing in the file:
# NOTE(woosuk) on the scheduling algorithm:
# There's no "decoding phase" nor "prefill phase" in the scheduler.
# Each request just has the num_computed_tokens and num_tokens_with_spec.That is the V1 unification, and everything downstream is arithmetic on a budget.
The V1 scheduler has no prefill phase and no decode phase. Every request carries a num_computed_tokens, and a step is just a token budget handed out until it runs out. Running requests go first, one token each for a plain decode, and whatever is left is offered to the queue.
That single number is the throughput/latency dial. A big budget lets a long prompt prefill in one shot, at the cost of making every decode in that step wait behind it. A small budget keeps inter-token latency tight and stretches time-to-first-token across many steps. Turn on long_prefill_token_threshold and you cap any one prompt’s share regardless of how much room is going spare — protecting the decodes from a 64k prompt that would otherwise eat the whole step.
Turn chunked prefill off and the failure mode is the one V0 shipped with: a prompt bigger than the free budget is not scheduled at all, the loop breaks, and the request waits for a step with enough room. V1 enables chunking by default, which is why max_num_batched_tokens can be smaller than max_model_len without rejecting long requests.
The step is: take token_budget = max_num_scheduled_tokens, walk the running list first giving each request the tokens it needs to catch up (one, for a plain decode), then walk the waiting queue spending what is left. A queued prompt gets min(num_tokens - num_computed_tokens, remaining_budget), capped further by long_prefill_token_threshold if it is set. Chunked prefill is not a mode; it is what happens when the subtraction runs out mid-prompt. enable_chunked_prefill defaults to True in v1, and turning it off restores the V0 behaviour where an oversized prompt hits a bare break and waits for a step with room for all of it.
There are at least four budgets in flight, not one. token_budget and a separate input_budget (they differ by the slots reserved for speculative draft tokens), a KV-block budget enforced by allocate_slots returning None, and encoder_compute_budget with its own encoder_cache_size for multimodal requests — vision-encoder compute and encoder output cache are not interchangeable with KV cache, so they get their own accounting. The queue is three-way too: waiting, skipped_waiting for requests deferred on async dependencies like a pending remote KV load, and running.
Preemption, and the path that got deleted
When allocate_slots cannot find blocks, the scheduler preempts. _preempt_request frees the request's blocks, sets num_computed_tokens = 0, and prepends it to the waiting queue. That is the whole recovery mechanism. Grep vllm/v1/ for swap_out and there are no hits — the CPU-swap path the paper describes is gone.

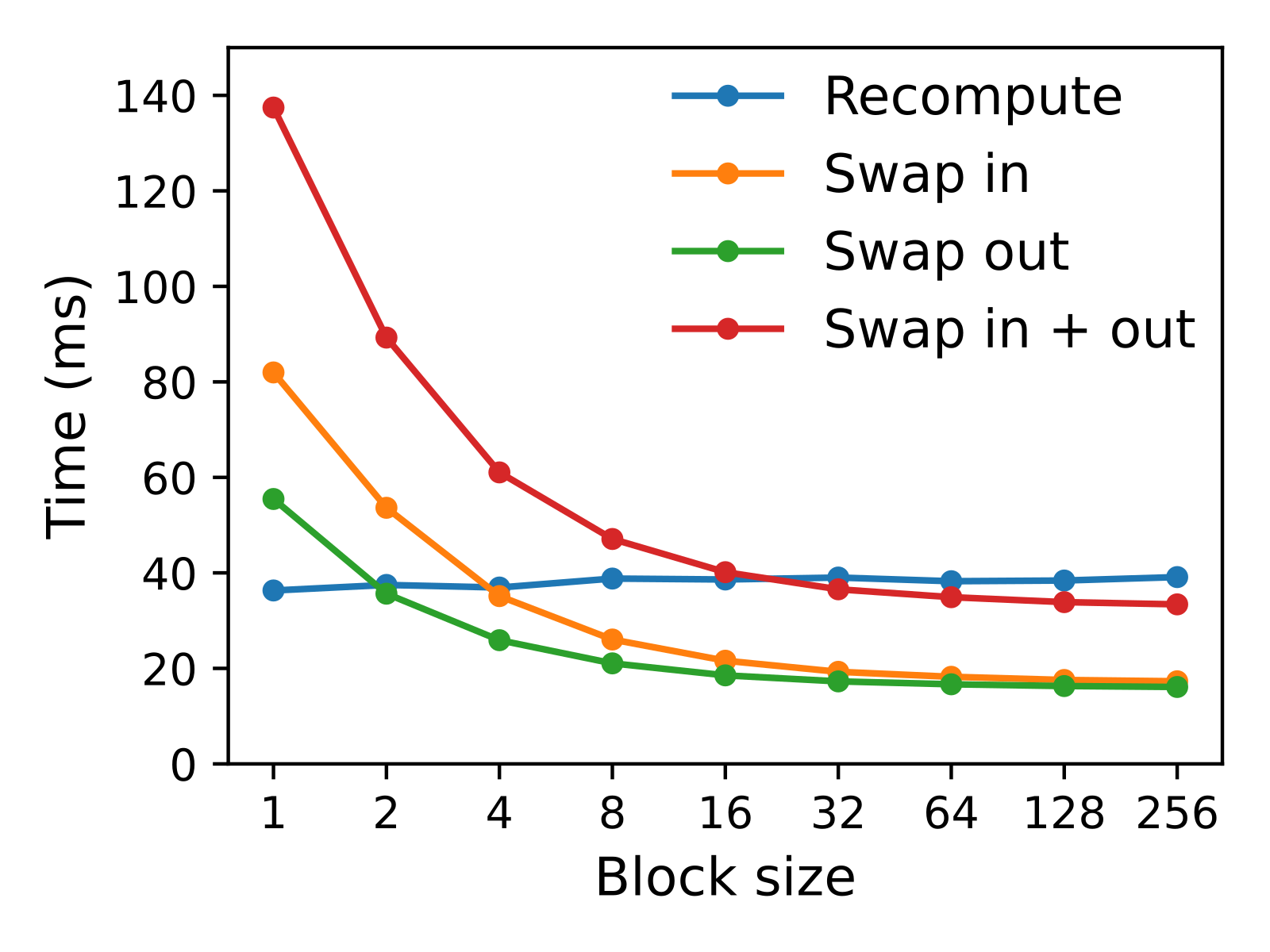

The paper measured why, and the answer is more interesting than "recompute is faster":
Read off that figure at block size 16 — vLLM's default, chosen for unrelated reasons — recompute costs roughly 38 ms and swap-in-plus-out roughly 40 ms. It is a tie. So the engine did not delete swapping because recompute won; it deleted swapping because at its own operating point the two were indistinguishable and one of them was a whole second code path with a CPU-side allocator and a transfer schedule.
The other half of the reason is prefix caching. Because freed blocks keep their hashes, a preempted request that comes back before its blocks are actually taken will hit its own prefix and recompute nothing. Being honest about it: the situation that caused the preemption is the pool being full, so those blocks are precisely the ones about to be handed out, and a preempted request should expect a real re-prefill more often than not. The cheap case is real, it is just not the common one.
Also worth noting, because it is easy to miss: if not preempted_reqs gates the entire waiting-queue loop. A step that had to preempt admits nobody new. Preemption is treated as evidence that the machine is over-committed, not just as a local failure.
What the V1 rewrite actually was
vllm/engine/llm_engine.py is seven lines:
from vllm.v1.engine.llm_engine import LLMEngine as V1LLMEngine
LLMEngine = V1LLMEngine # type: ignorevllm/core/ does not exist. The docs are blunt about the motive — "as new features were developed independently, the system grew increasingly complex… revealing the need for a more streamlined and unified design" — and about the goals: a hackable core, near-zero CPU overhead, features on by default rather than behind flags.
The structural change is a process boundary. V1 splits the API server from the EngineCore, which owns the scheduler, the KV cache manager and the workers, and talks to the frontend over ZMQ with MessagePack. One API server process by default (scaling with data parallelism), one EngineCore per DP rank, one worker process per GPU. docs/design/metrics.md states the rule explicitly: "EngineCore is the inner loop. Performance is most critical here. AsyncLLM is the outer loop… so this is where any overheads should be if possible." Tokenization, detokenization, multimodal loading and metrics were moved out of the loop that dispatches forward passes.
The busy loop itself is four lines, and step() is six:
scheduler_output = self.scheduler.schedule(...)
future = self.model_executor.execute_model(scheduler_output, non_block=True)
grammar_output = self.scheduler.get_grammar_bitmask(scheduler_output)
model_output = future.result()
...
engine_core_outputs = self.scheduler.update_from_output(scheduler_output, model_output)Checking "near-zero CPU overhead"
The mechanism is AsyncScheduler, and it is a good trick: schedule step n+1 before step n's output exists, by tracking num_output_placeholders — a count of tokens the request is going to have, whose ids are not known yet — and filling spec_token_ids with a reusable list of -1 placeholders. The scheduler stops waiting on the GPU.
It is on by default. It is also disabled, silently, in six situations, all in vllm/config/vllm.py:1276-1324 and vllm/platforms/cpu.py:203: pooling models, any speculative-decoding method outside EAGLE/MTP/draft-model/n-gram-GPU/DSpark, disable_padded_drafter_batch, executor backends that do not support it, ROCm DeepEP high-throughput DBO (where the combination "can corrupt DP+EP generation accuracy"), and the CPU platform unconditionally. Medusa and suffix decoding are in the repo and both fall outside the supported set. So the claim holds for the mainline path and quietly does not for several configurations people actually run — and the only way you find out is a warning_once in the log.
The frontend is being rewritten in Rust
This is the thing I did not expect to find, and it is the largest recent structural change in the repo. rust/ is a Cargo workspace of 15 crates, 309 .rs files and 110,352 lines, and it is a drop-in replacement for the Python serving frontend:
rust/src/server/ 67 files 24,602 lines OpenAI-compatible HTTP API (axum)
rust/src/parser/ 63 files 19,638 lines tool-call and reasoning parsers
rust/src/chat/ 52 files 19,330 lines chat templates, structured events
rust/src/engine-core-client/ 36 files 12,512 lines ZMQ + MessagePack to the engine
rust/src/text/, tokenizer/ 25 files 8,467 lines tokenizer and incremental detokenizer
VLLM_USE_RUST_FRONTEND=1 vllm serve … and Python launches vllm-rs as a supervised worker, handing it the inherited listening socket. Default is off (vllm/envs.py:164), it is explicitly experimental and not feature-complete, and you can already find the seams — mm_device_do_normalize is force-disabled under the Rust frontend, with a warning.
The reason this is possible at all is the V1 rewrite. The process boundary that was drawn in 2025 to keep Python off the critical path is the same boundary that now lets the entire northbound half be replaced in another language without touching the scheduler. That is the payoff of a rewrite showing up three years late, and it is a better argument for V1 than any throughput number.
It also says something about where the remaining time goes. If the frontend — chat templating, tool-call parsing, detokenization, HTTP — is worth 110,000 lines of Rust, then per-request CPU work in Python was measurably eating GPU utilisation. That matches what SGLang found when it moved its radix tree into C++.
Prefill and decode as separate machines
vllm/distributed/kv_transfer/kv_connector/v1/ has nineteen entries, and the notable thing is how many of them are other people's systems: lmcache_connector.py (plus a multiprocess variant and an integration directory), mooncake/, moriio/, nixl/, flexkv_connector.py, hf3fs/, an offloading/ tier, and a multi_connector.py for composing them.
This is the substrate for disaggregated serving — running prefill and decode on different hardware, sized independently, with KV cache shipped between them. The architectural statement is in the plurality: vLLM did not ship one blessed KV transport, it shipped an interface and let LMCache, Mooncake, NIXL and others plug in. That is what a project does when it has decided it is a platform.
The scheduler is aware of them, which is where it stops being a clean abstraction. WAITING_FOR_REMOTE_KVS is a request status; skipped_waiting exists partly to hold requests whose KV is still in flight; and _preempt_request takes a drop_stale_output flag specifically for "connectors with a pending KV hand-off, which the preemption's block free would leave without valid KV." Pluggable memory transports leak into the scheduling loop, because they have to.
What I'd take from reading it
The good. The v1 engine is a genuine rewrite and it shows — the block pool is clean, the free/evicted distinction is right, the two-policy free queue and the null block are real pieces of taste. Content-addressed prefix caching with chained hashes and a documented, seedable hash function is the correct design, and the PYTHONHASHSEED handling shows someone got burned and fixed it properly. The unified token budget is the right abstraction: chunked prefill, prefix caching and speculative decoding all fall out of it instead of being three modes. And the KV connector interface is an act of restraint by a project that could easily have shipped only its own.
The cost. 858,000 lines and 280 model files is not a codebase anyone holds in their head. Three speculative-decoding proposers named after individual models is a maintenance surface that grows with the field, not with the project's own ambitions. The same is true of the attention directory: every new architectural fashion is a new file someone has to keep working across 280 models and a dozen hardware backends. And the defaults documentation is now the source — "async scheduling is on" is true until you read the six branches where it isn't.
The thing worth saying out loud. vLLM's design is now substantially determined by other people's release schedules. gdn_attn.py exists because labs started shipping gated delta networks; gemma4.py in the spec-decode directory exists because Gemma 4 drafts differently; prefix_match_unit exists because a hybrid model's block size stopped being one number. When people say the inference stack has become infrastructure, this is the concrete form of it — a codebase whose job is to absorb whatever the model builders decide next, fast enough that day-zero support is the expectation rather than an achievement.
What I'd watch. The Rust frontend. Not because rewriting an HTTP server is interesting, but because of what it implies: the engine boundary is now stable and load-bearing enough that half the system can be swapped out behind it. If vllm-rs becomes the default, the Python in vLLM will be the scheduler, the KV cache manager, and the model definitions — which is roughly the set of things that should have been Python all along.
Which makes the two ideas in the elevator pitch a strange thing to still be leading with. PagedAttention was 2023's problem, and it was solved so thoroughly that the default block size hasn't moved in three years. The 2026 problem is that no two models agree on what a layer is any more, and something has to serve all of them.
